MLZ
foundry

Premium quality castings

About us

MLZ foundry was founded in the early 1990s as a production base for the research and development institute of special-property steels and superalloys. There are a lot of innovative methods that were actively implemented at our plant. Over time MLZ foundry reorganized into a separate enterprise with casting workshop using Lost Foam technology that is able to produce up to 300 metric tons of casting products per month, weighing from 0.1 to 1000 kilograms.



Download brochure
up to 300 MT of casting products per month
from 0,1 to 1000kgs weighing of castings

Technology

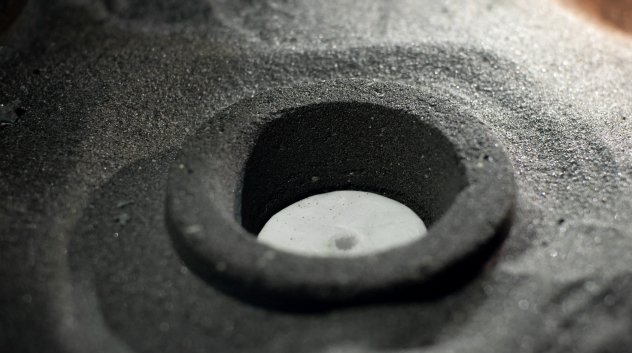

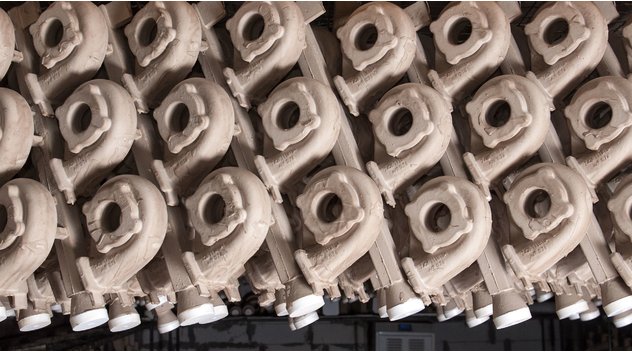

Lost Foam casting

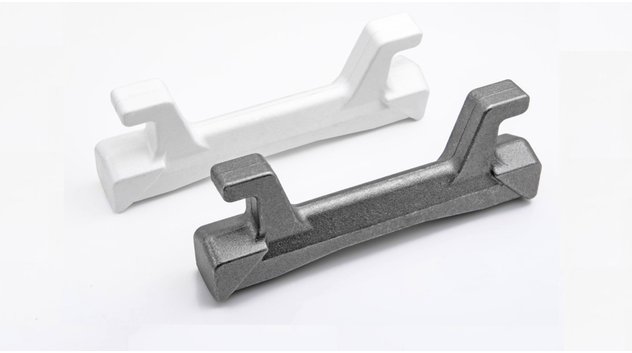

Lost Foam technology – is a unique casting process that perfectly suits the production of geometrically demanding castings. This process uses the casting pattern producing of expandable polystyrene. During the pouring, the liquid metal vaporizes the foam pattern and at the same time precisely fills the resulting hollow space. In this way, an exact metallic copy of the foam pattern is created. In addition to geometrical complexity, castings that are made using Lost Foam technology have the high-end surface quality and size precision

Advantages of Lost Foam technology:

  • allows to produce geometrically complex details with the high-quality of surface
  • the highest size precision and minimal fits
  • ability of casting weight reduction in by using thin-walled castings
  • reducing or escaping of the following machining costs
  • low cost and short time of pattern creating
22
dd

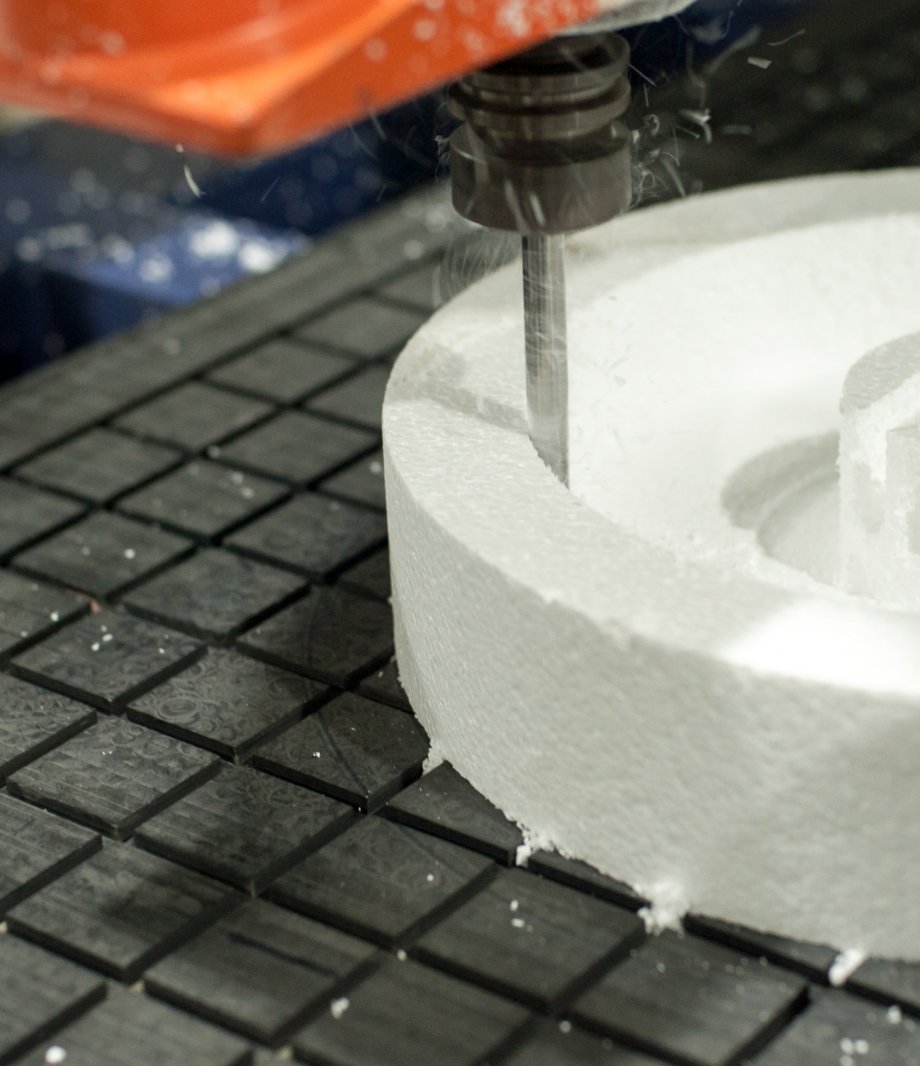

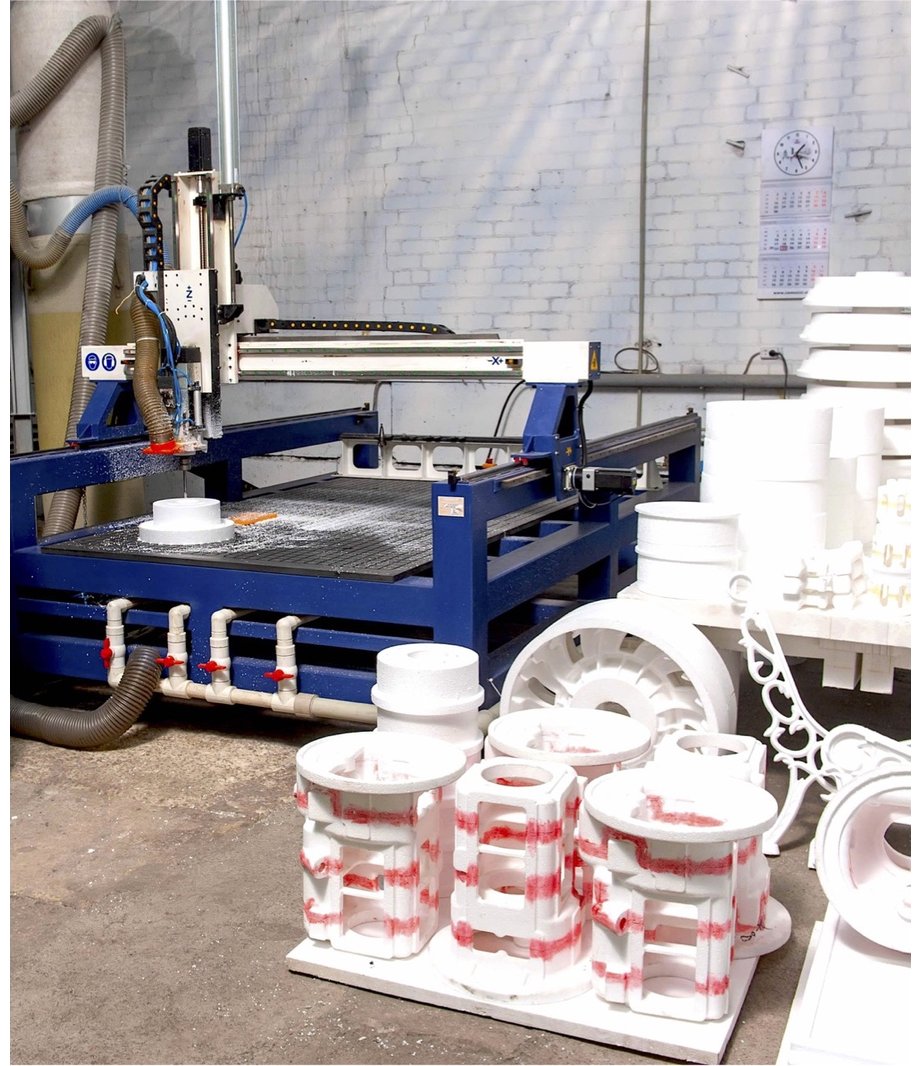

3-D milling process (XYZ method)

For single or small-series orders we use casting pattern creating technology, made of the solid expandable polystyrene blocks by the 3-D milling process (using CNC machines) that offers the whole set of opportunities:

  • infinite opportunities of casting shape
  • ability of producing complex case-shaped parts without pattern creating
  • the highest size precision of patterns producing, acceptable deviation of cutting tools position no more than 0,01 mm
  • absolute repeatable accuracy of patterns that is provided by software and hardware
  • ability of rapid patterns correction in case of faulty pouring
  • reduction of order terms execution to 3-4 working days if specialized situations arise

Cold-Box (Nobake) casting process

Cold-Box (Nobake) is a flexible casting process for small and medium series volumes. The method achieves excellent surface quality, maintains size dimensional accuracy and can be flexibly used for large and small cast parts.

Foundry shop

Our foundry shop is equipped according to the highest standards that includes induction furnaces from 250 to 2500 kilograms as well as modern laboratory facilities for the chemical analysis and physical properties control. Molding line equipped with automatic system of sand regeneration (cooling, fine fraction separation, magnetic cobber).

Flaskworkshop: 600х600х600mm, 1000х1000х1000mm, 1200х1200х1500mm, 2000х600х2000mm.

We are able to create flasks of other size for the production of custom outsized castings as well.



After the production stadium and cleaning of castings in shot-blasting machine, our foundry is able to perform the following stages of treatment regarding to the customer`s demand:

  • heat treatment
  • tooling
  • assembling and installation

MLZ foundry uses chill casting method of aluminum as well and provides services of casting patterns creating.



Steels and alloys

At the moment we are producing castings made of the following metals and alloys:

gray cast iron
carbon steel
aluminum alloys
alloyed special quality cast iron
low-alloy steel
bronze
ductile iron
special quality steel
other non-ferrous metals and alloys

Quality management system is certified in accordance with international standard compliance ISO 9001:2015.

Products

Our casting products are used in most diverse manufacturing sectors from machine-building and energy industries to consumer products and ornamental / art castings.

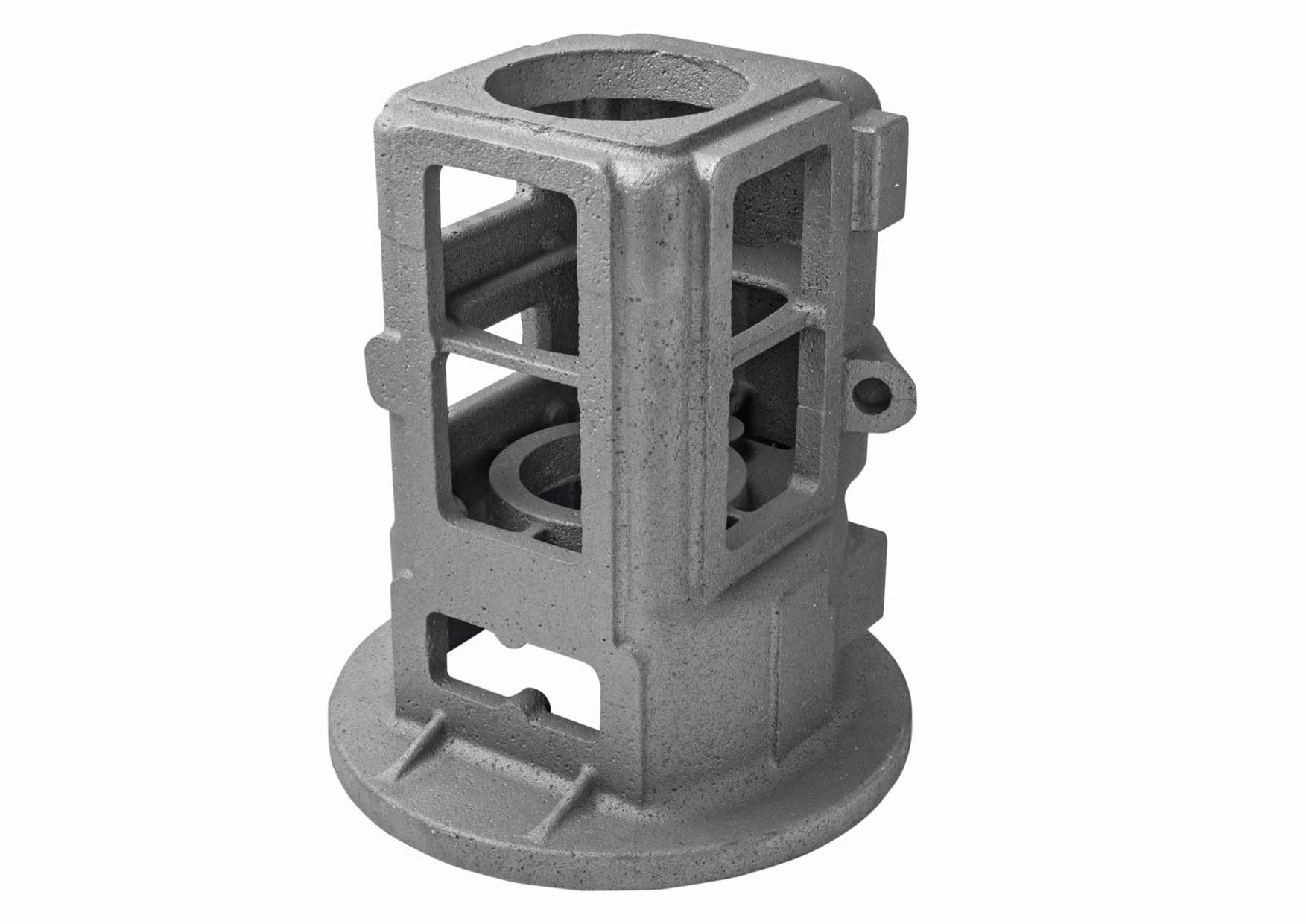

Industrial compressor housing
Industrial compressor housing
Alloy: ductile iron EN-GJS-500-7 (GGG50)
Weight : 54 kg

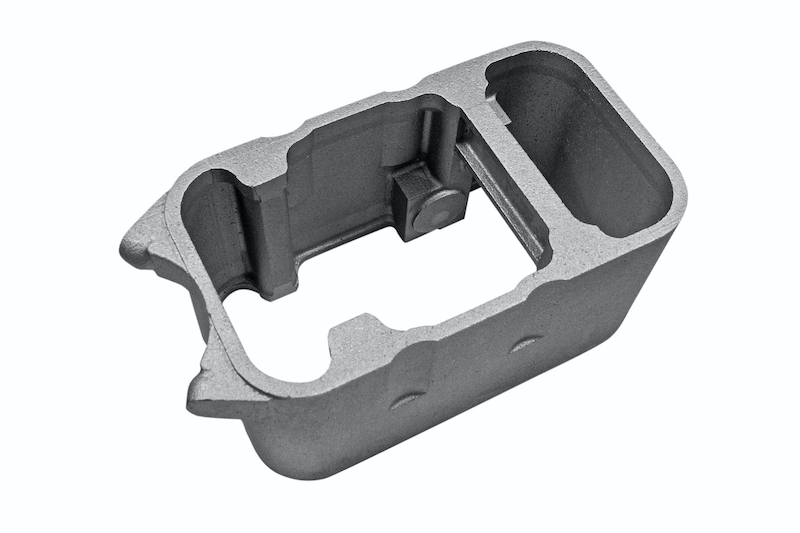

Valve drive housing
Valve drive housing
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight :88 kg

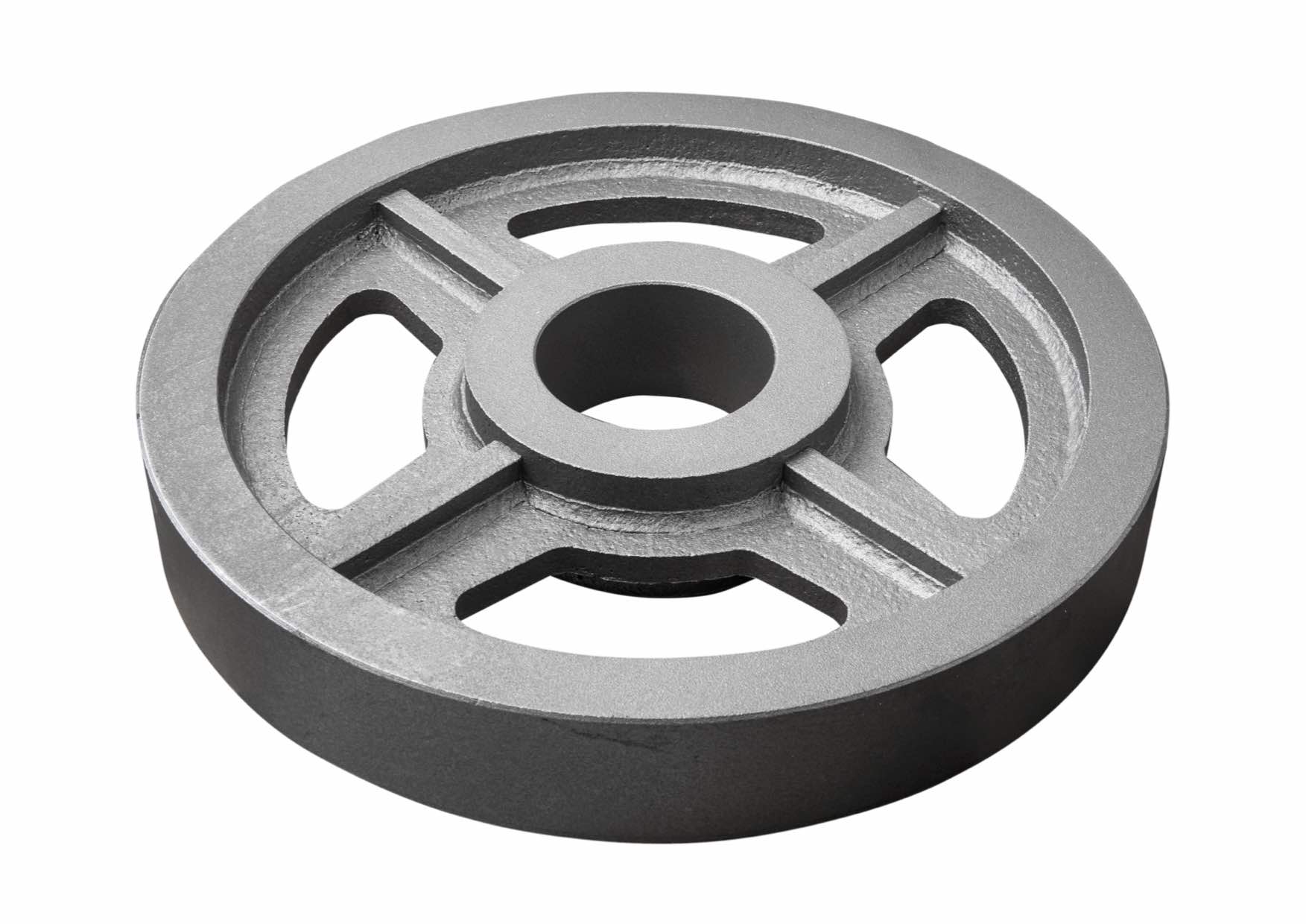

Raw part of gear wheel
Raw part of gear wheel
Alloy: steel 50L
Weight : 120 kg
heatproof hearth block
heatproof hearth block
Alloy: Heat resistant steel GX130CrSi29 (1.4777)
Weight : 50 kg

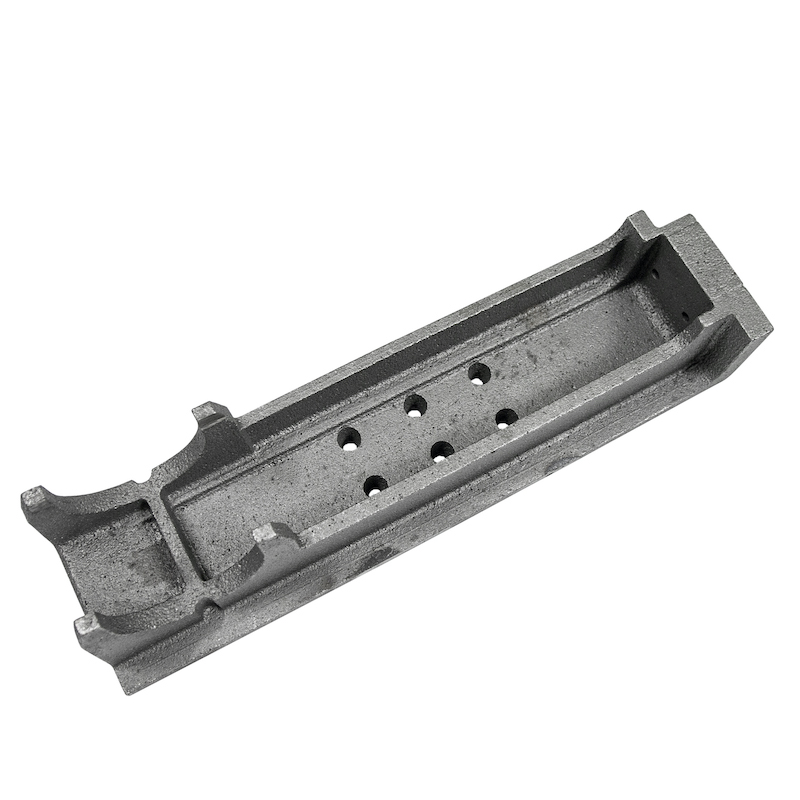

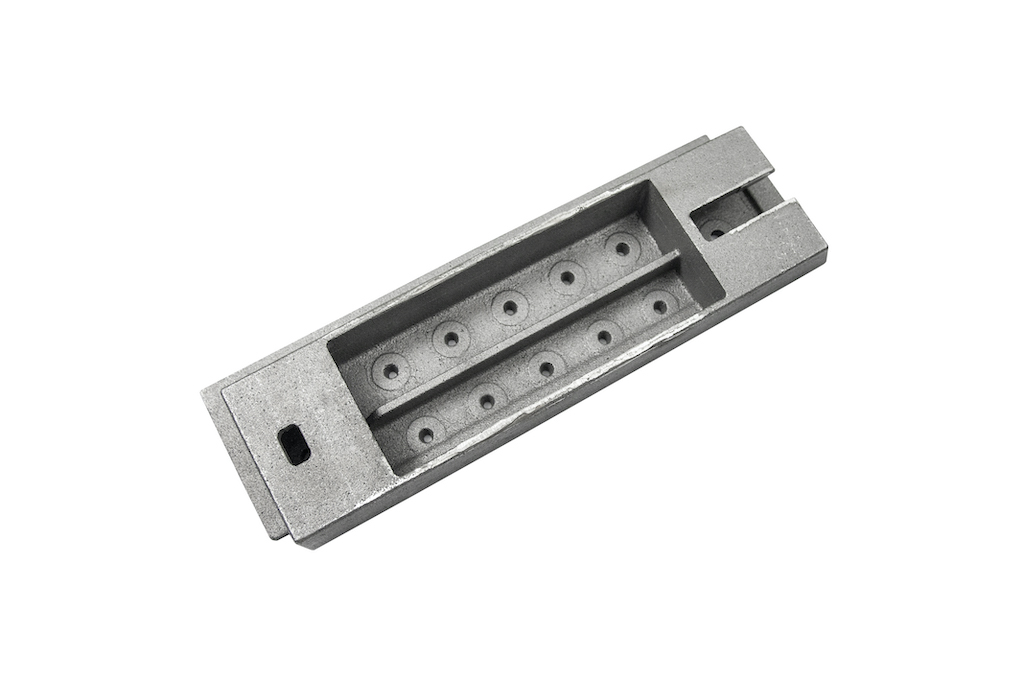

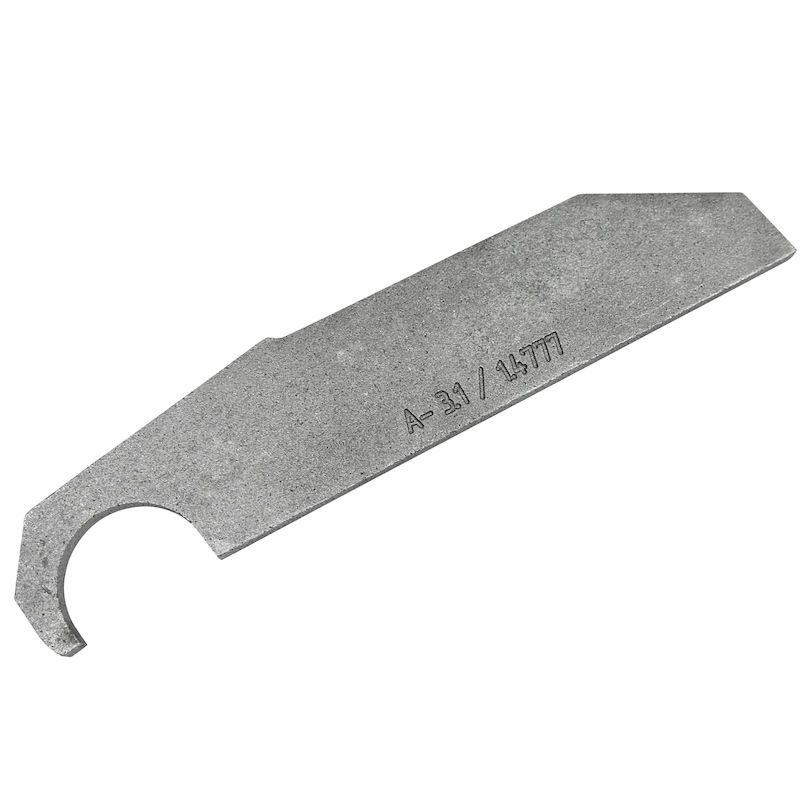

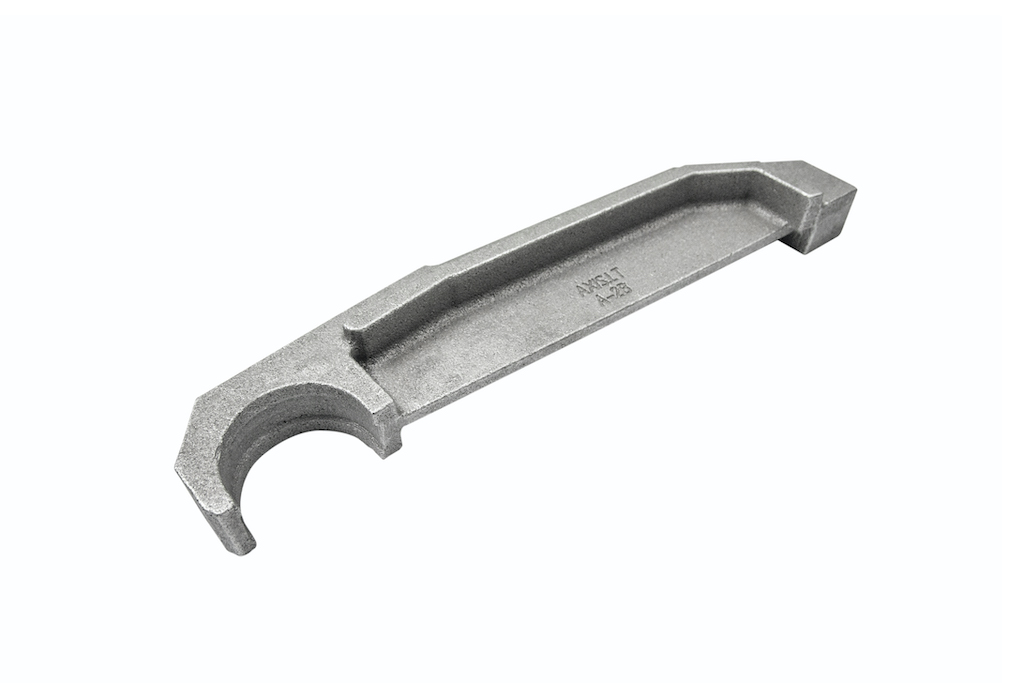

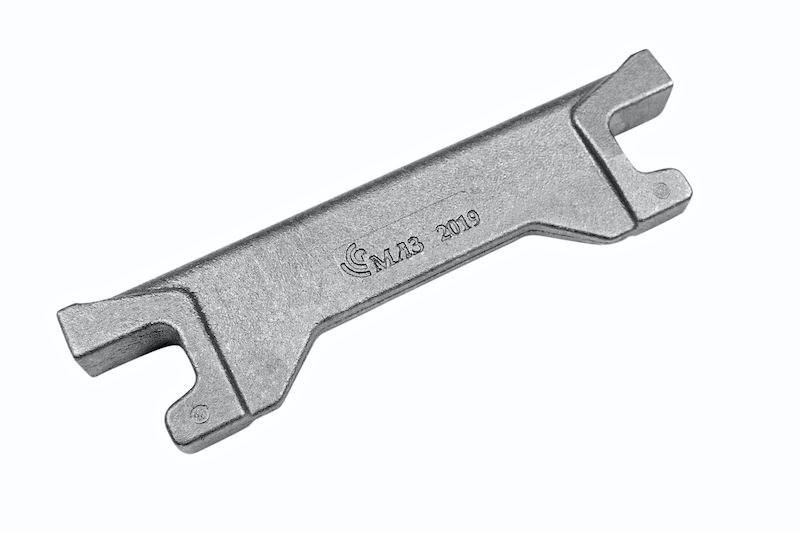

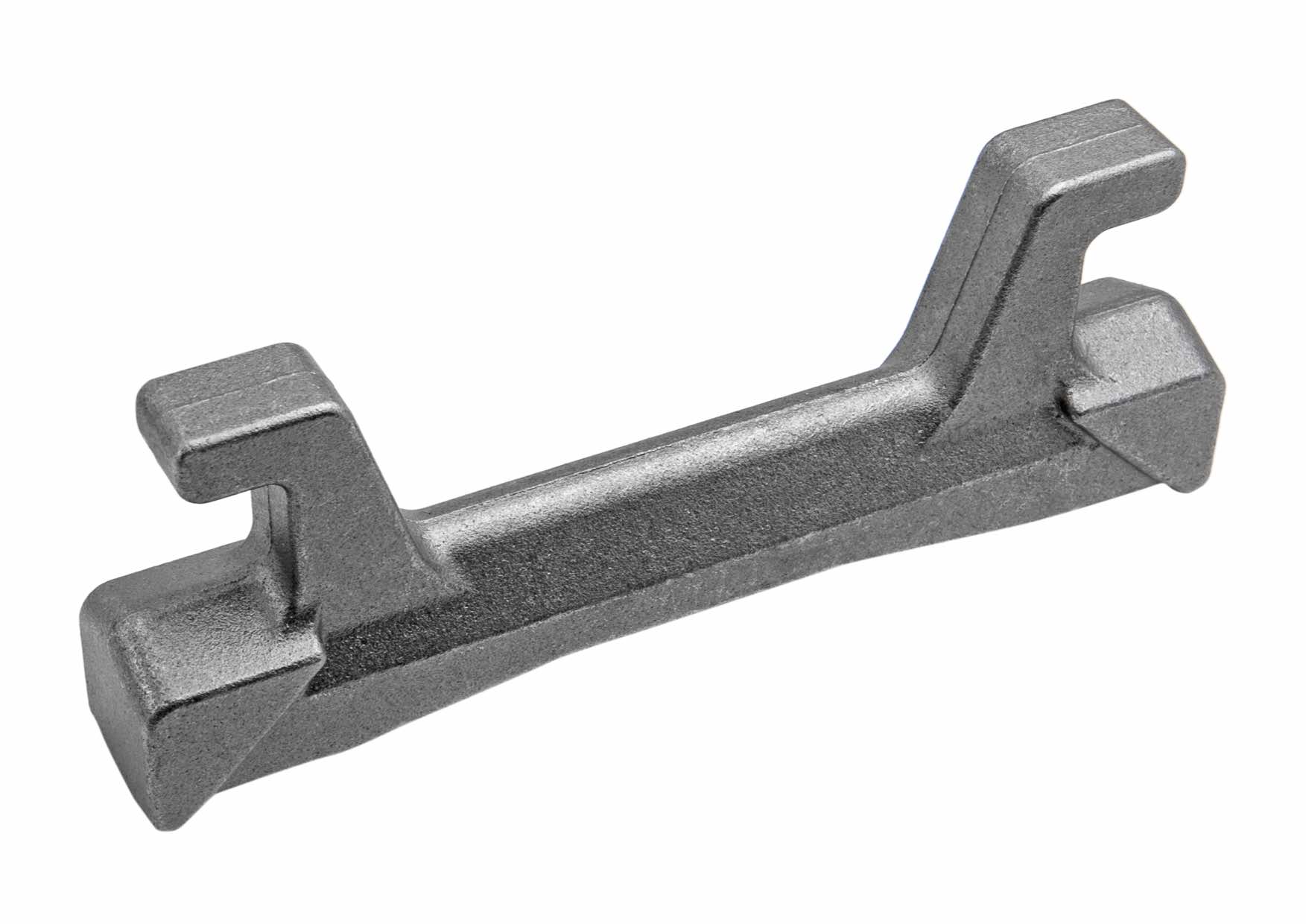

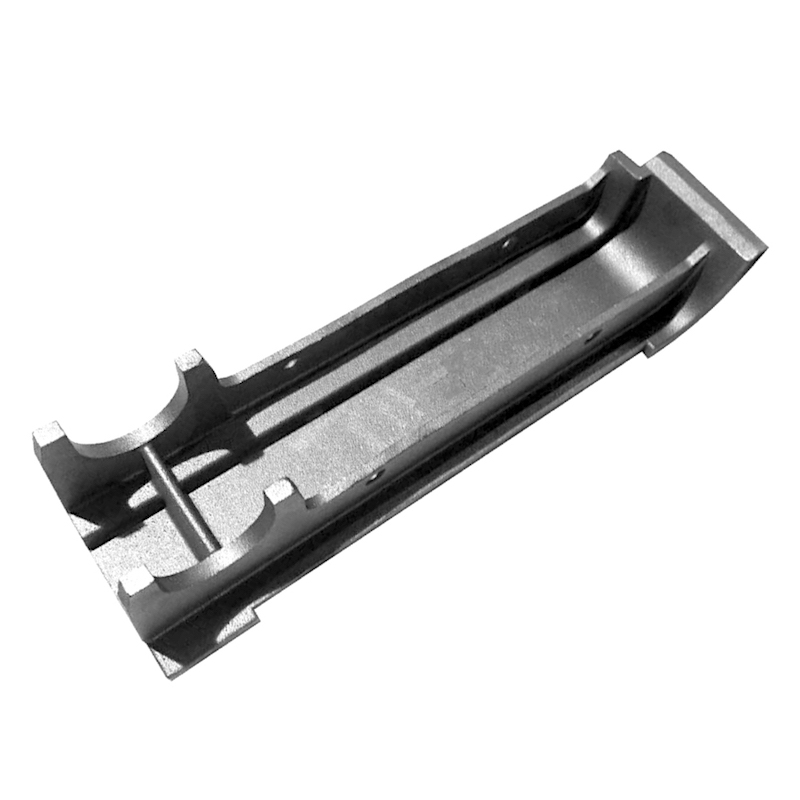

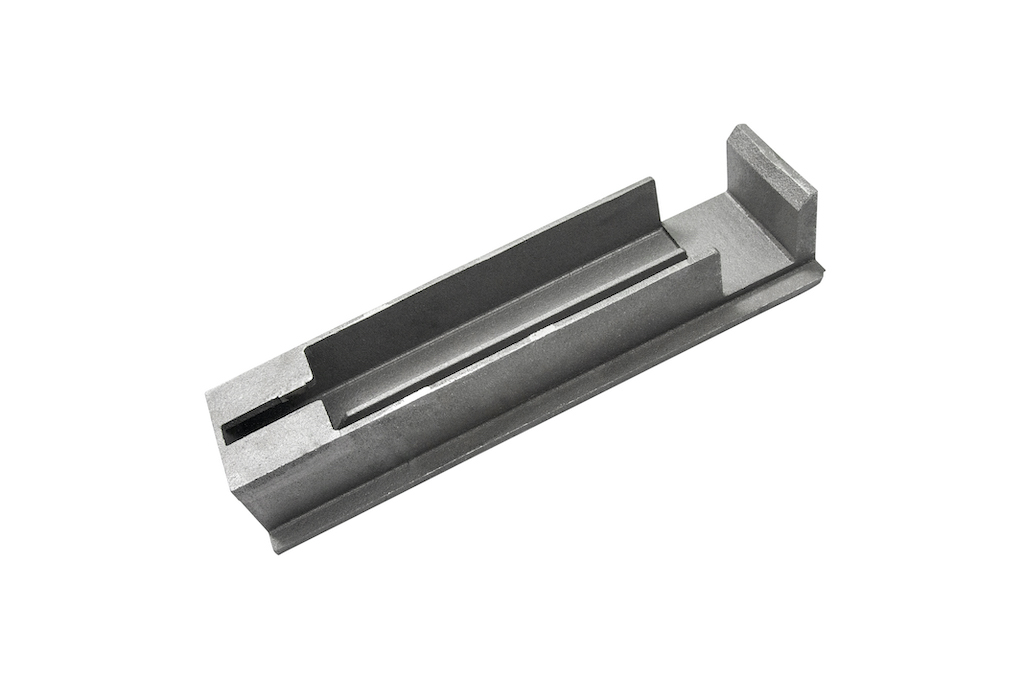

Grate bar of a sintering pallet
Grate bar of a sintering pallet
Alloy: Heat resistant steel EN 10295
Weight : 5,7 kg

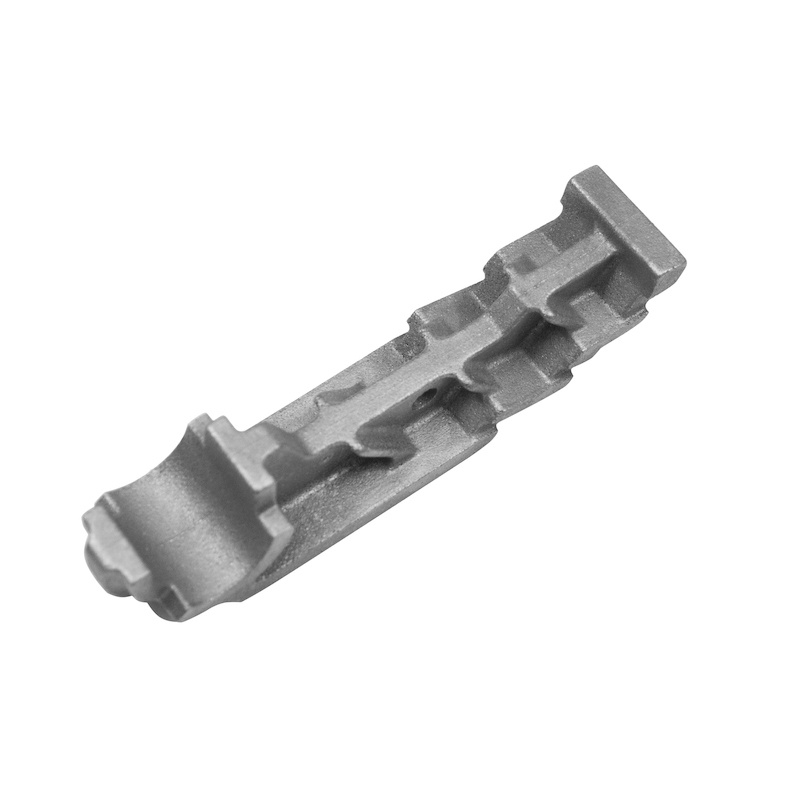

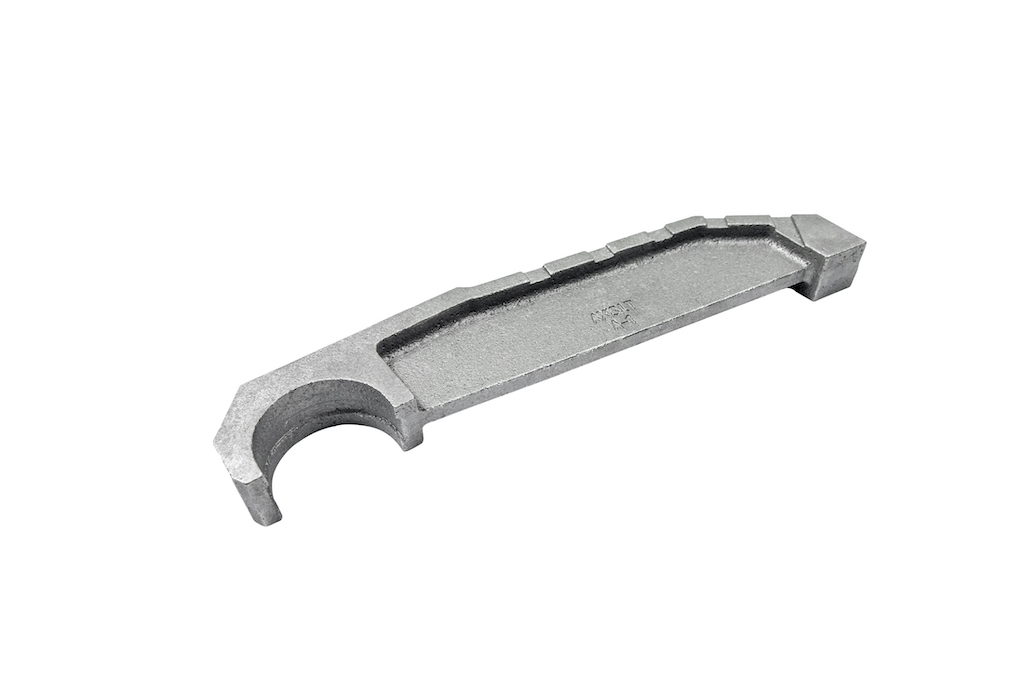

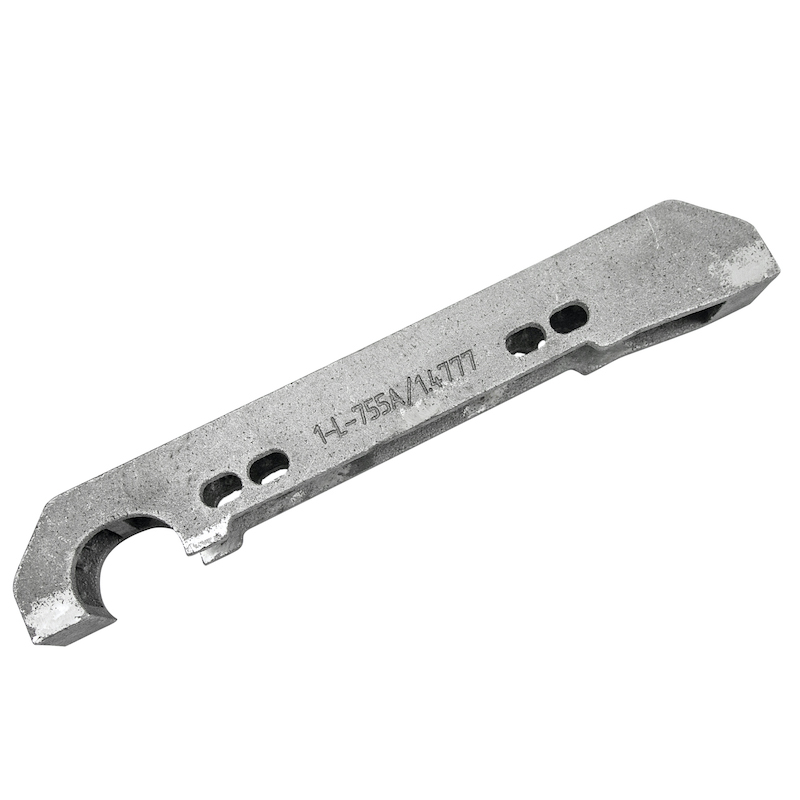

Grate bar of a sintering pallet
Grate bar of a sintering pallet
Alloy: Heat resistant steel EN 10295
Weight :3.2 kg
Cultivator safety housing
Cultivator safety housing
Alloy: ductile iron EN-GJS-500-7 (GGG50)
Weight : 14,5 kg

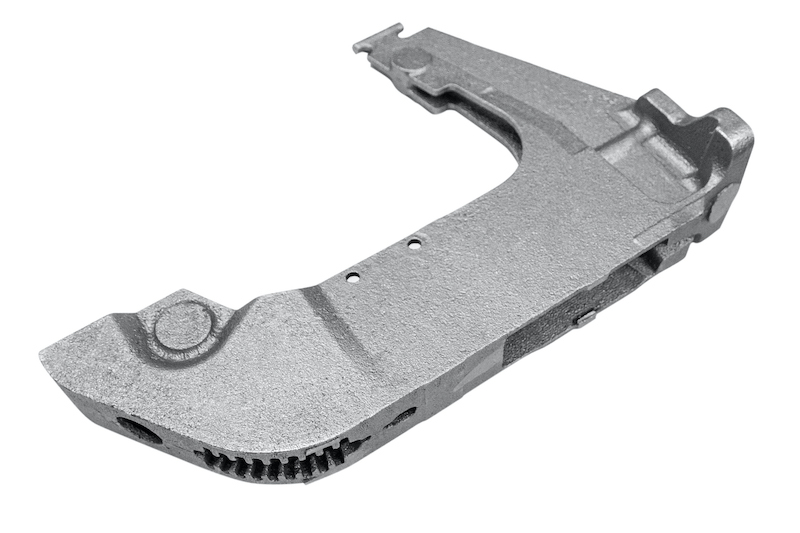

seed boot bracket of seeding-machine John Deere
seed boot bracket of seeding-machine John Deere
Alloy: ductile iron EN-GJS-500-7 (GGG50)
Weight :14.5 kg

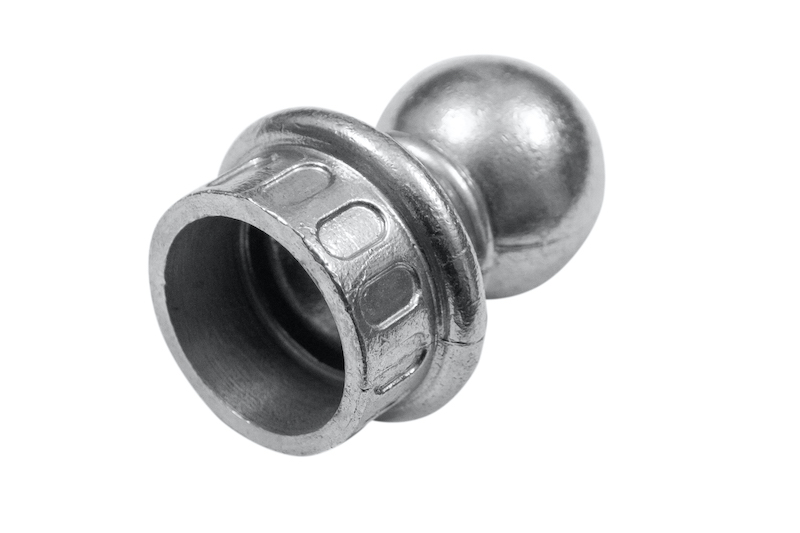

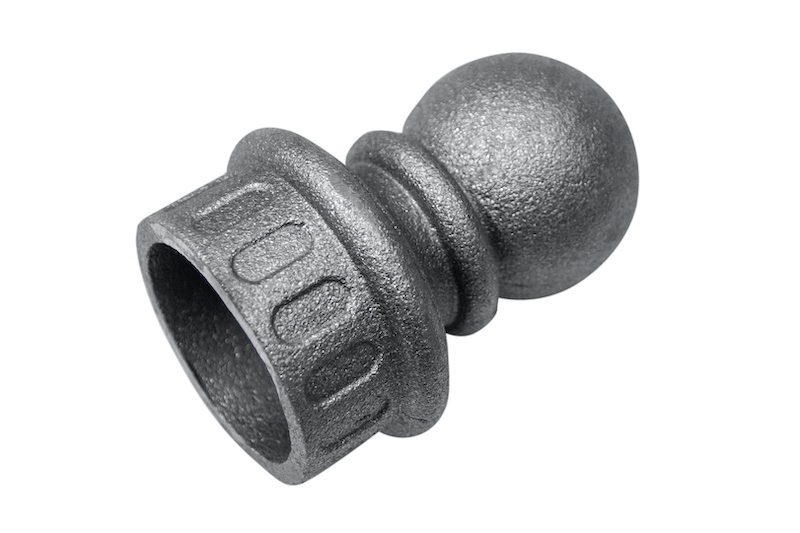

Head decoration of pillar Ø60
Head decoration of pillar Ø60
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight :1.4 kg
Head decoration of pillar Ø60
Head decoration of pillar Ø60
Alloy:Aluminum
Weight :0.5 kg

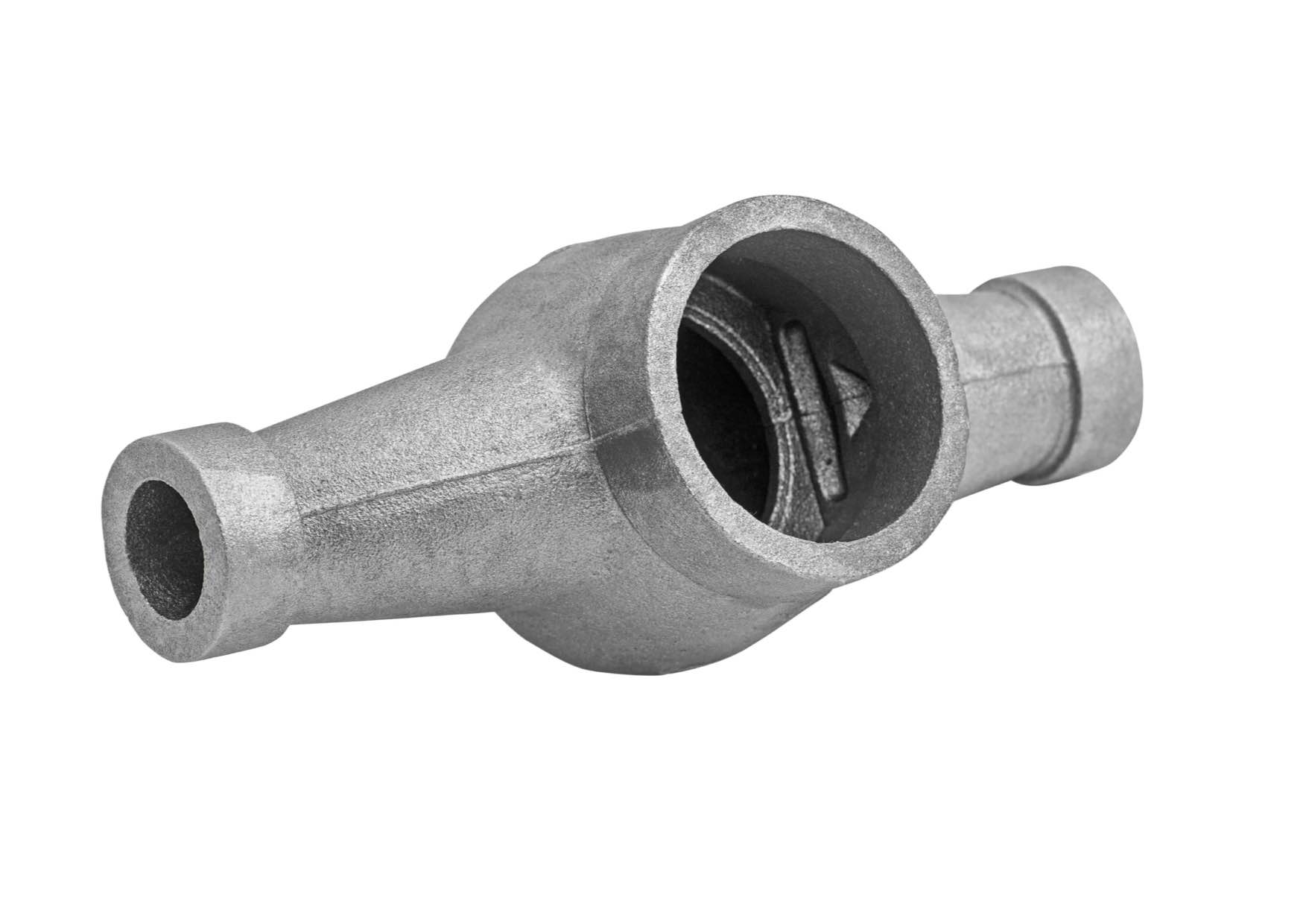

Water meter housing
Water meter housing
Alloy: ductile iron EN-GJS-500-7 (GGG50)
Weight : 2.36 kg

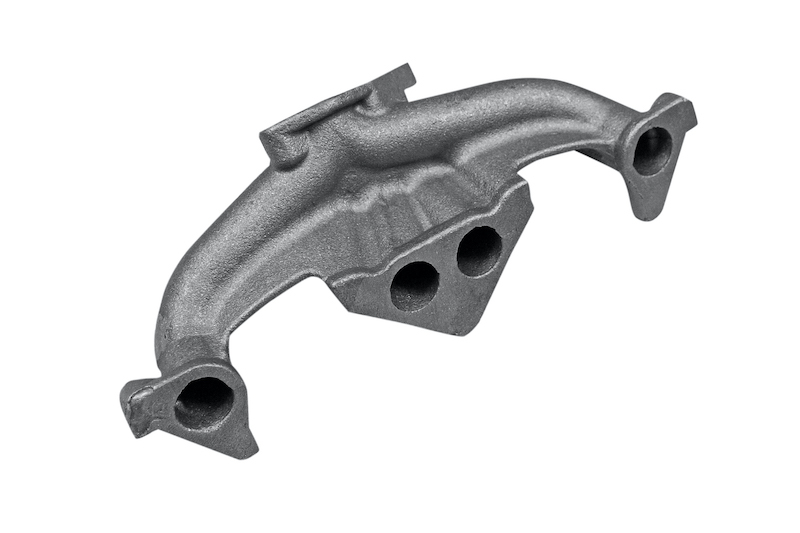

Exhaust collector
Exhaust collector
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight :3.4 kg

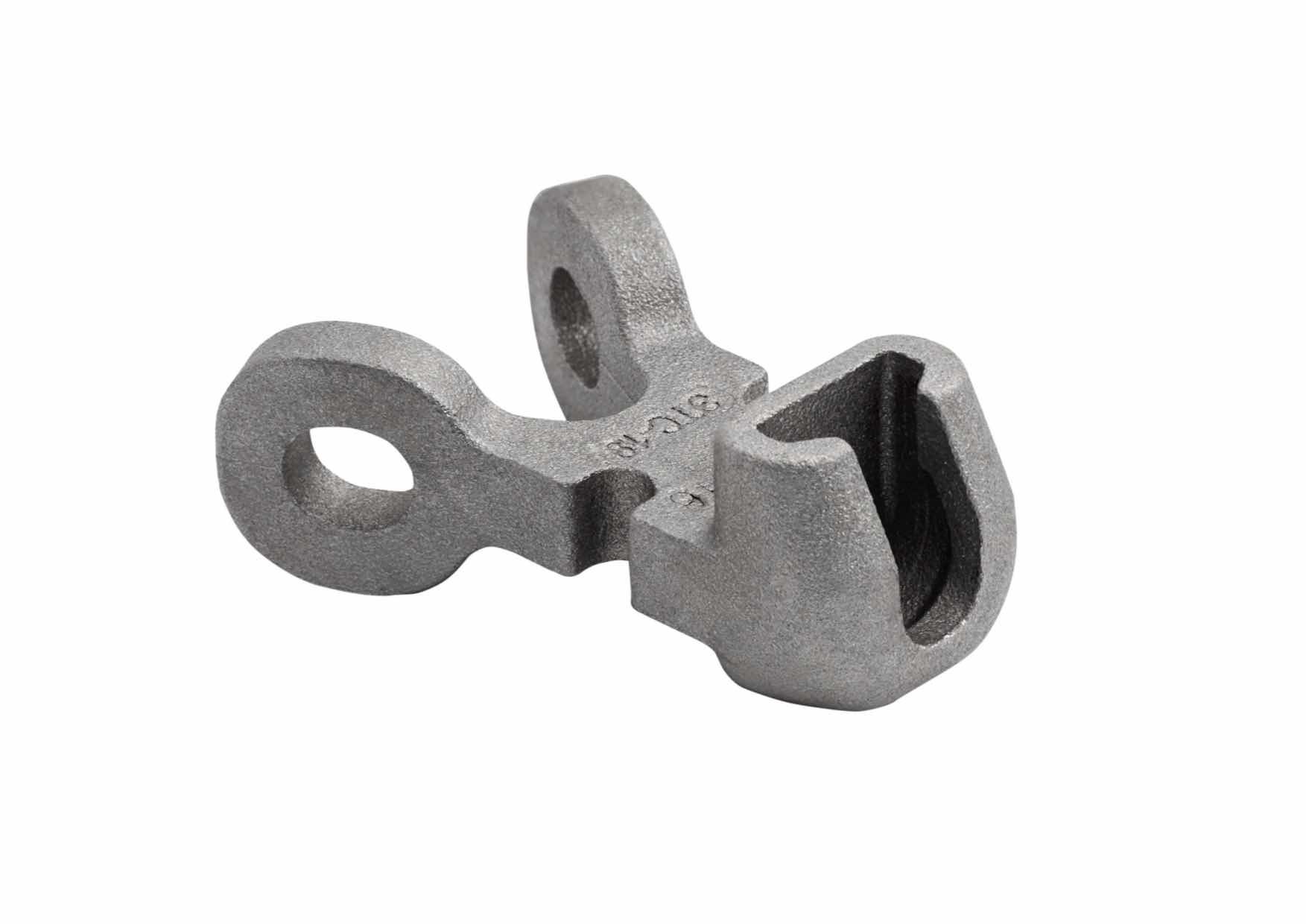

Electric power part. Power line ear USK-12-16
Electric power part. Power line ear USK-12-16
Alloy:4 ductile iron EN-GJS-450-10 (GGG45)
Weight : 1.32 kg

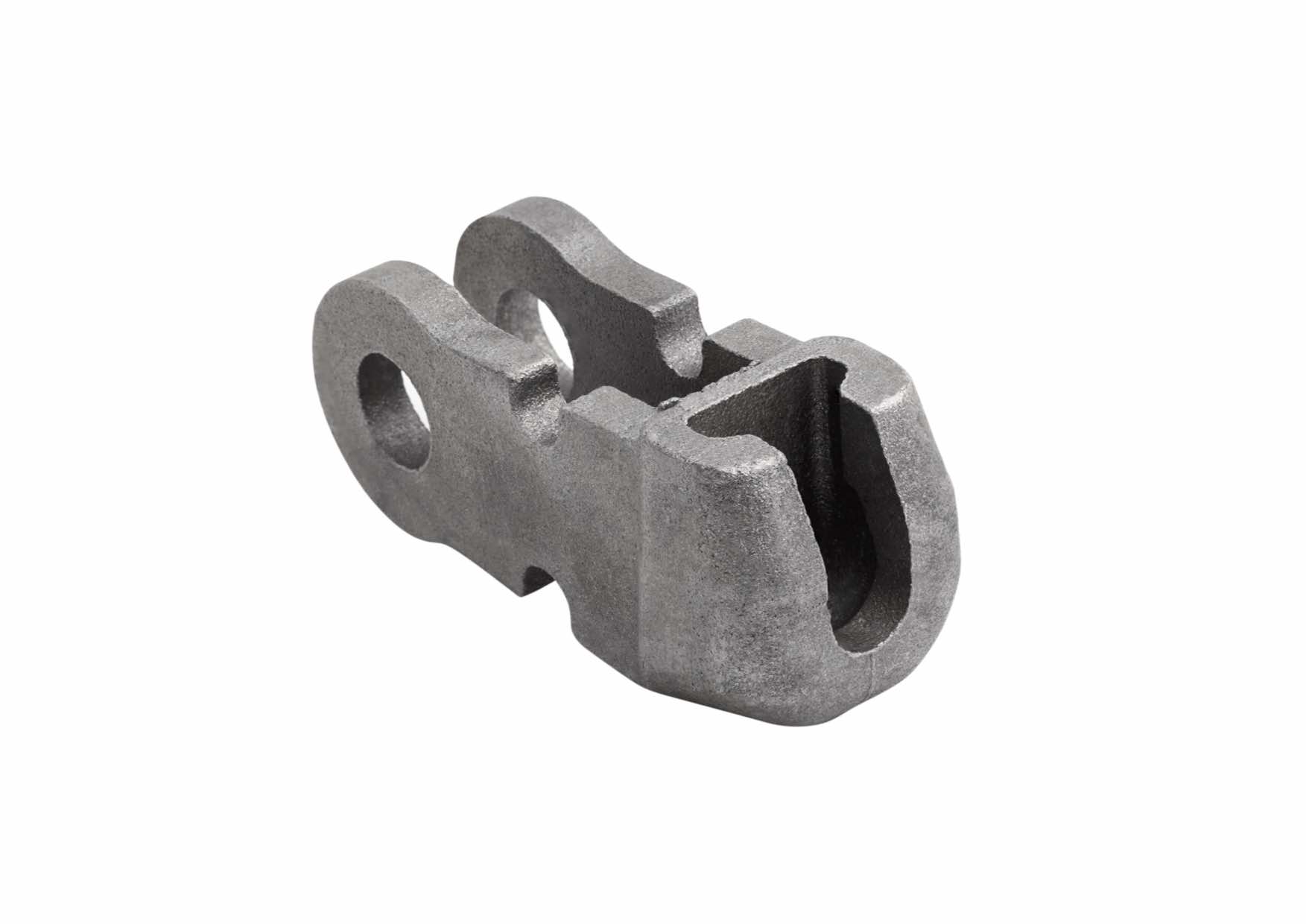

Electric power part. Power line ear U2-7-16
Electric power part. Power line ear U2-7-16
Alloy: ductile iron EN-GJS-450-10 (GGG45)
Weight : 0.78 kg

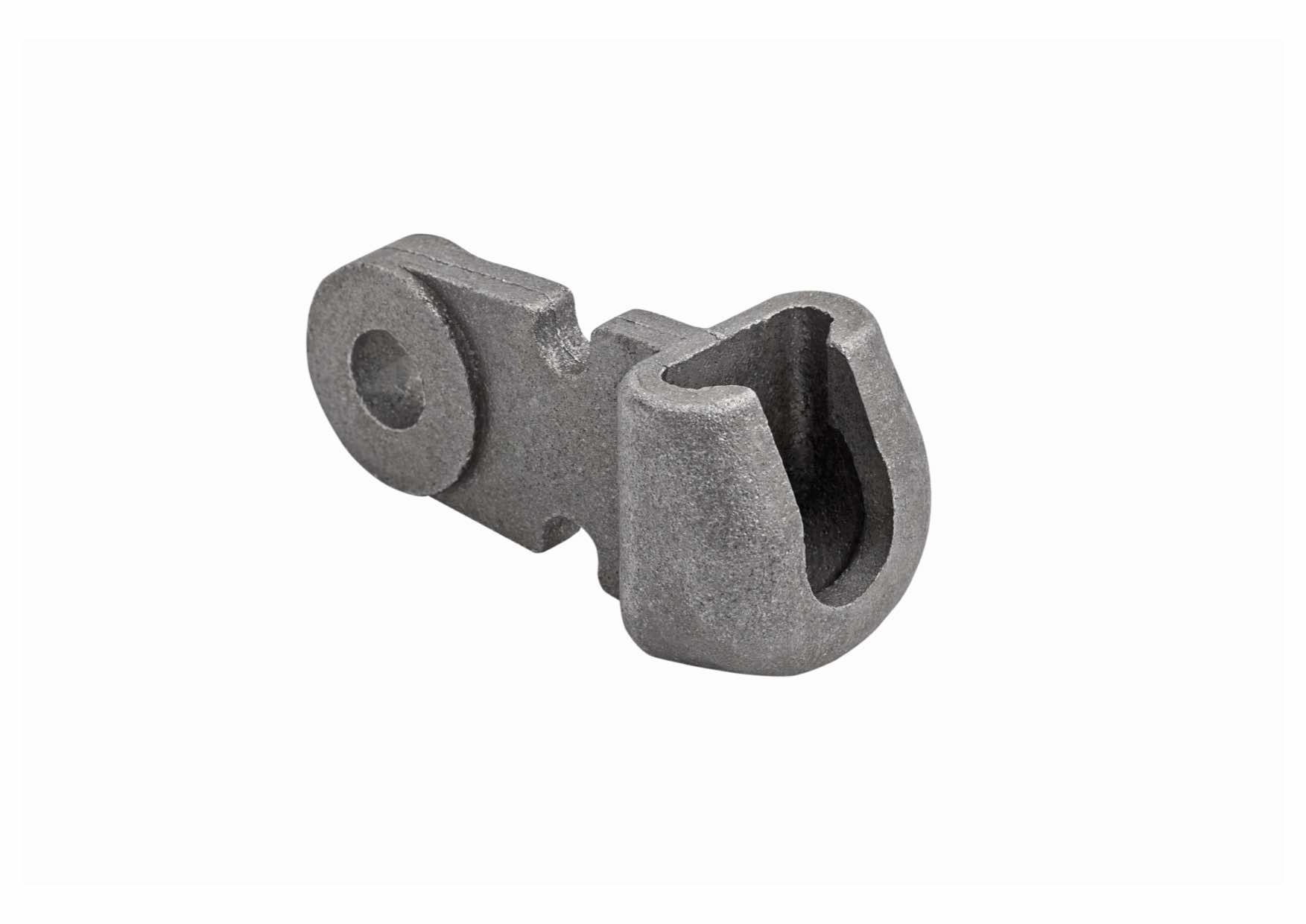

Electric power part. Power line ear U1-7-16
Electric power part. Power line ear U1-7-16
Alloy: ductile iron EN-GJS-450-10 (GGG45)
Weight :0.62 kg
Electric power part. Insulator fitting / cap
Electric power part. Insulator fitting / cap
Alloy: ductile iron EN-GJS-450-10 (GGG45)
Weight : 1.0 kg

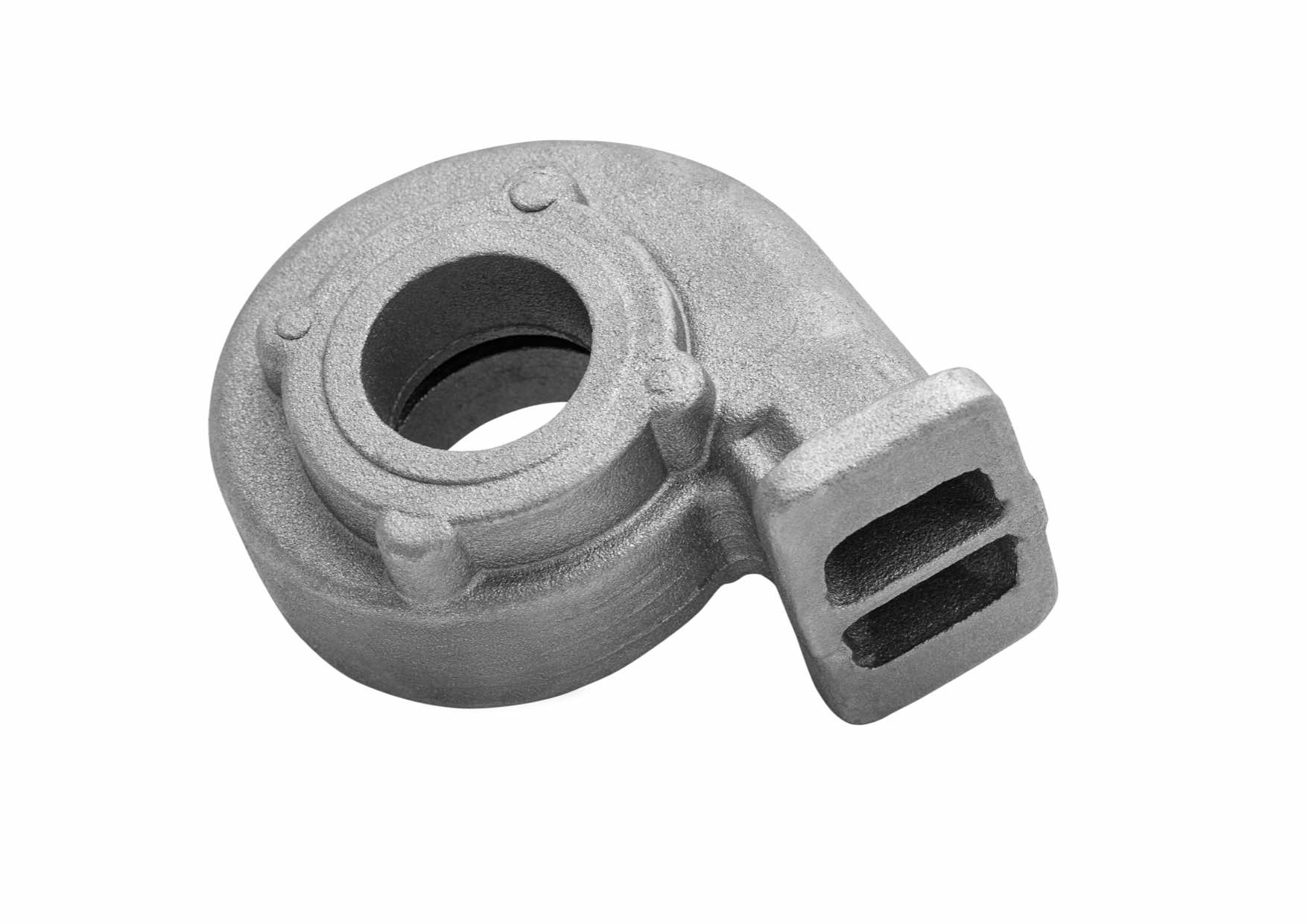

Housing of the turbocharger TKP7C6 Euro
Housing of the turbocharger TKP7C6 Euro
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight : 5 kg

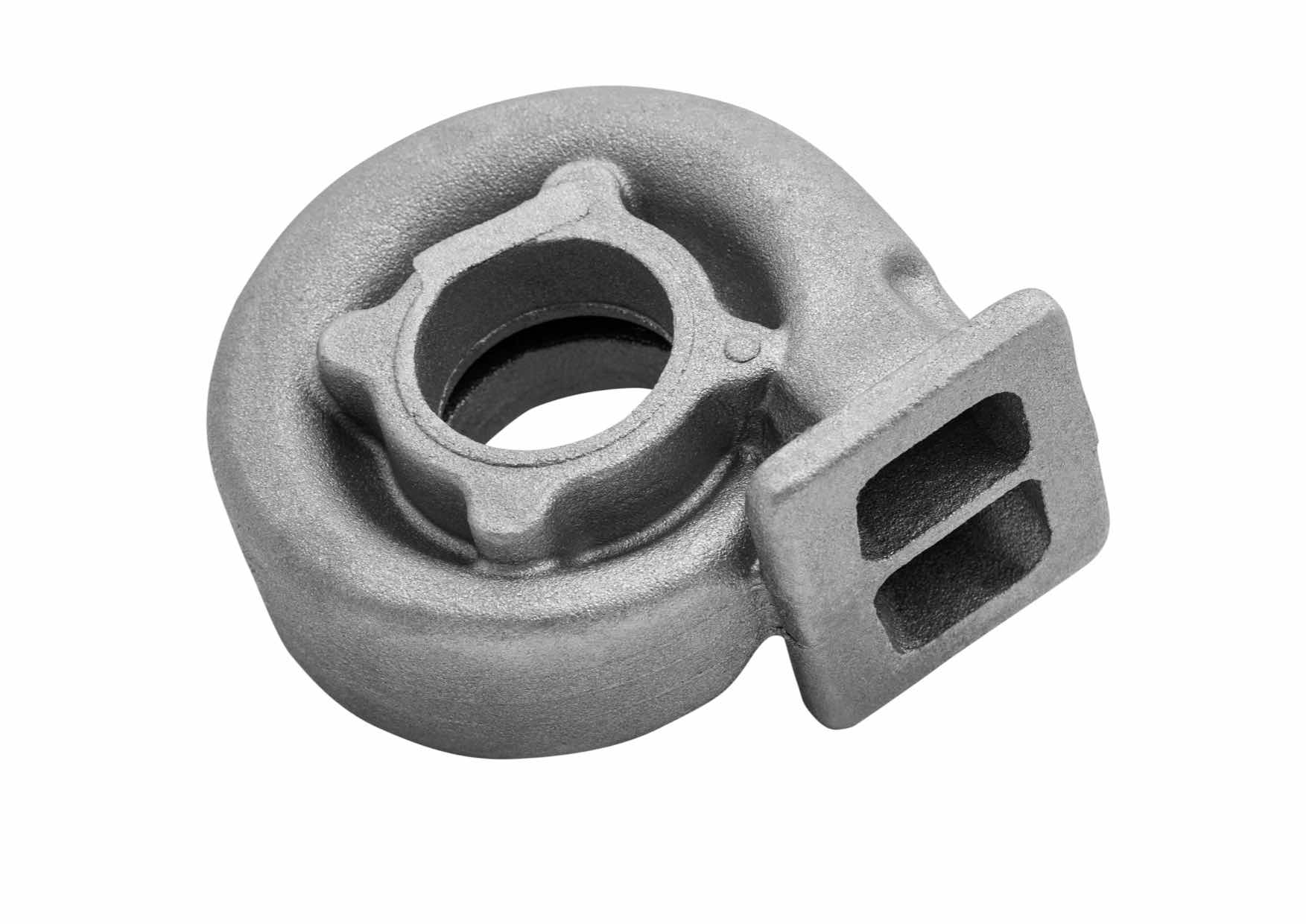

Housing of the turbocharger TKP8, 5SZ
Housing of the turbocharger TKP8, 5SZ
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight : 6.3 kg
Housing of the turbocharger TKP7
Housing of the turbocharger TKP7
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight : 5.2 kg
Middle housing of the turbocharger
Middle housing of the turbocharger
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight : 2.15 kg

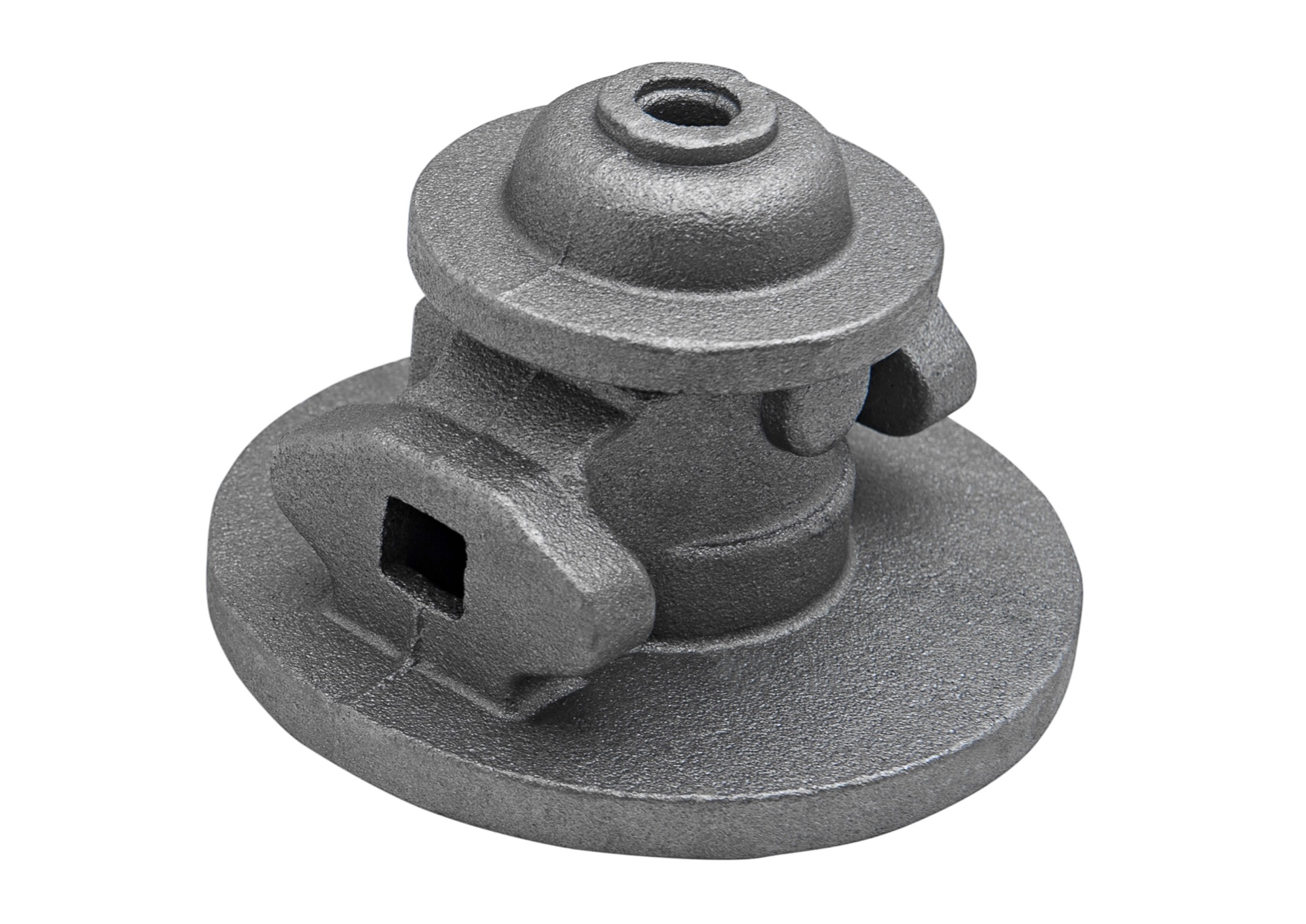

Middle housing of the turbocharger TKP-6
Middle housing of the turbocharger TKP-6
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight : 2,5 kg

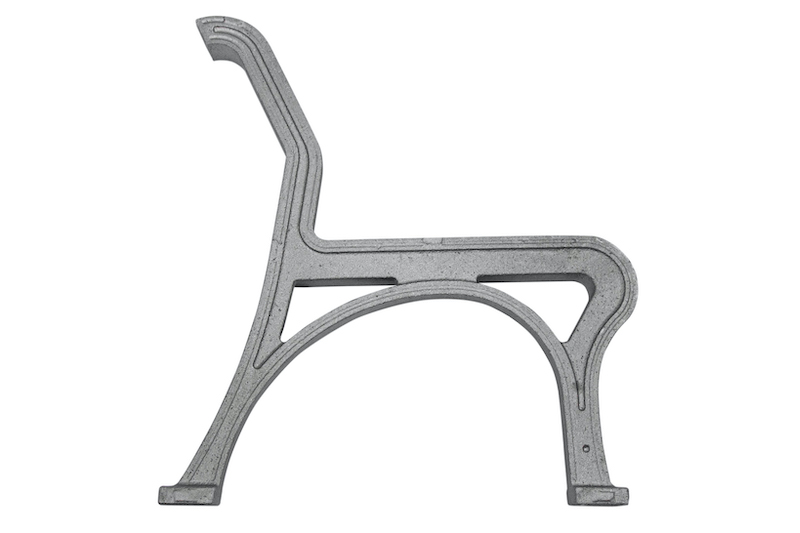

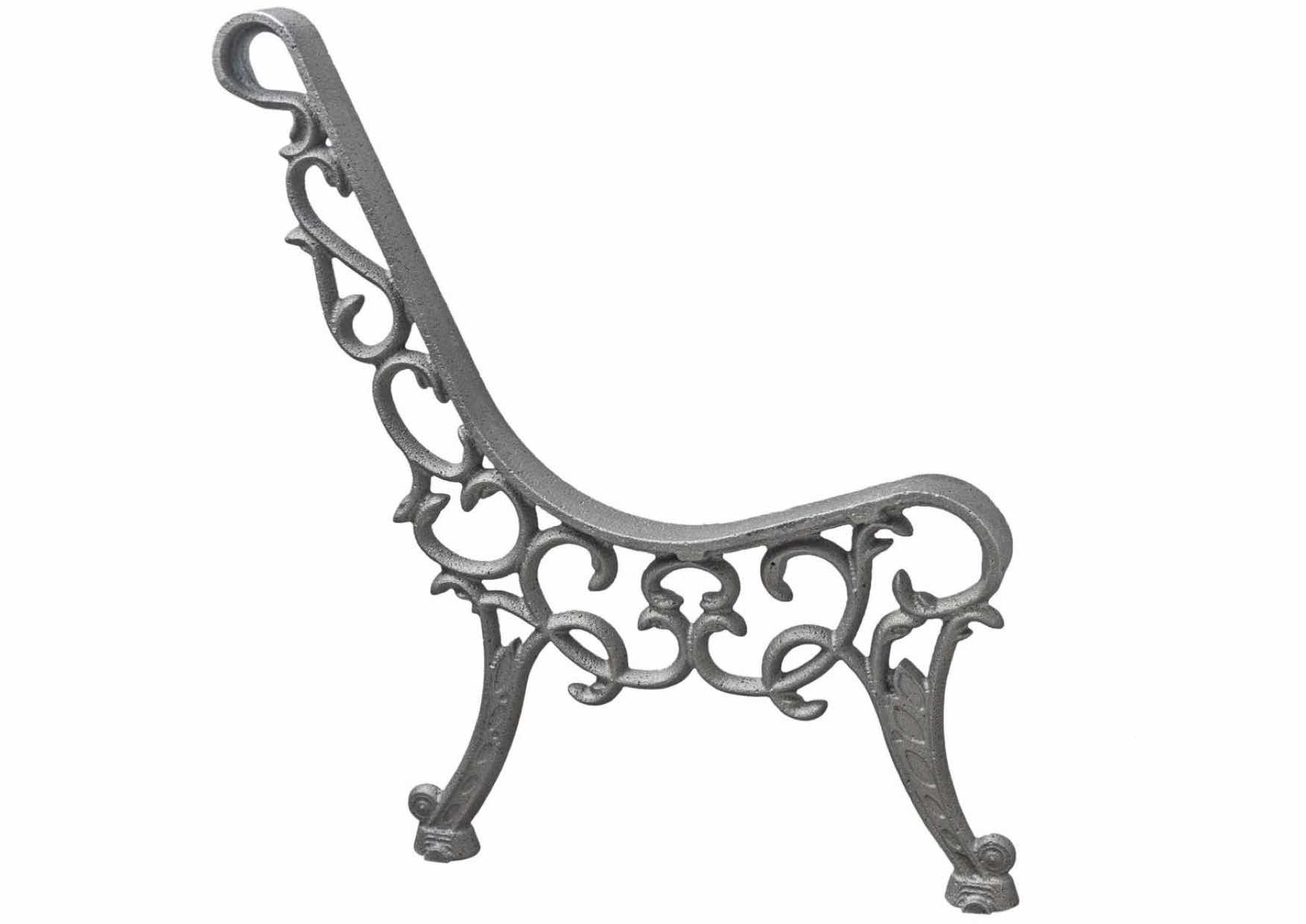

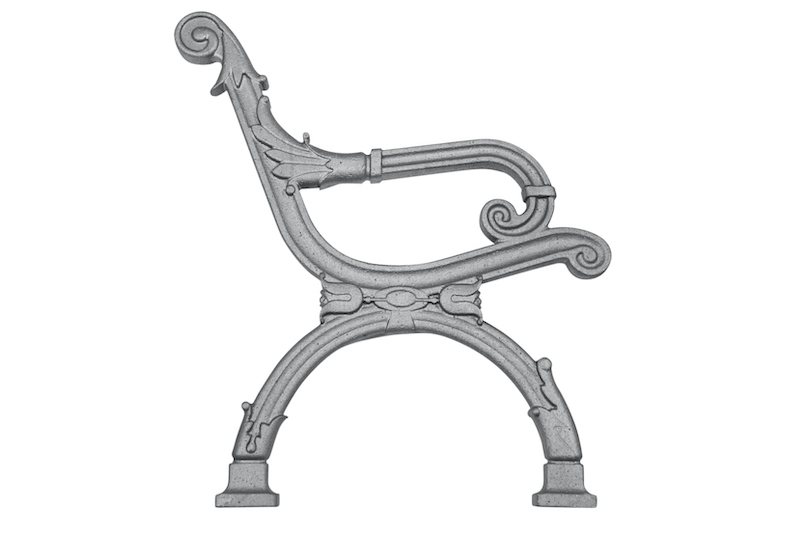

Bench side part
Bench side part
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight : 14.5 kg
Bench side part
Bench side part
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight :17 kg
Bench side part
Bench side part
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight :21 kg

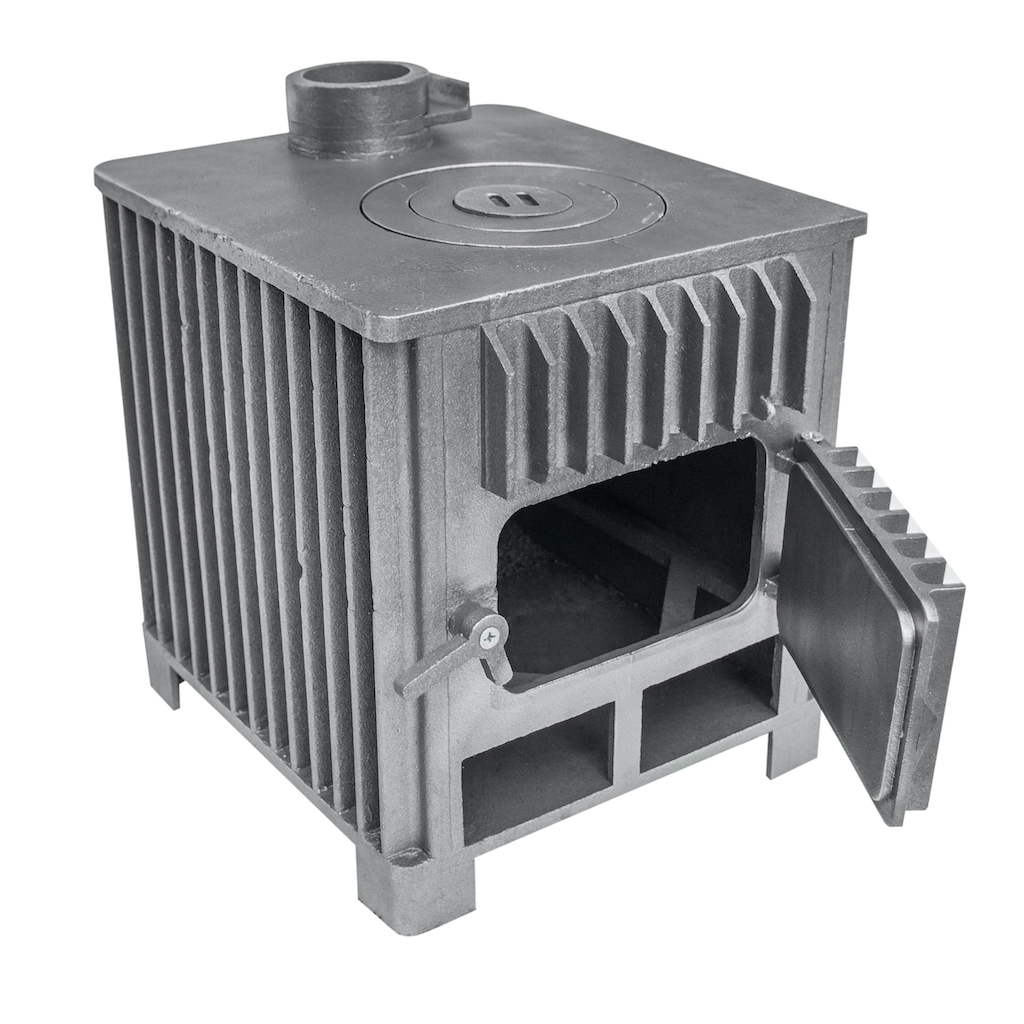

Big household furnace
Big household furnace
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight :75 kg
Small household furnace
Small household furnace
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight :25 kg

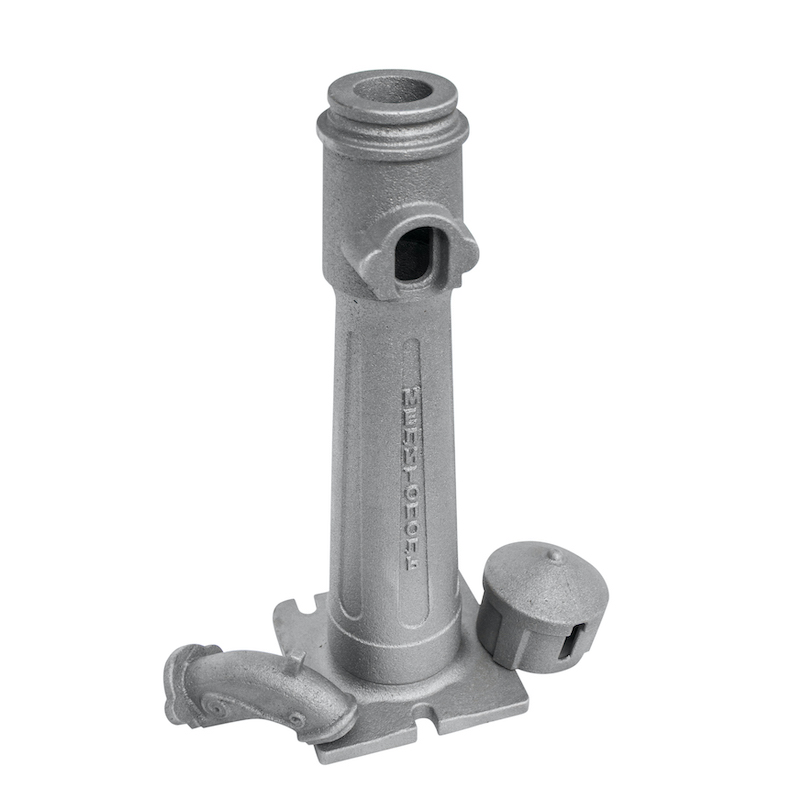

Water intake set
Water intake set
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight :62 kg

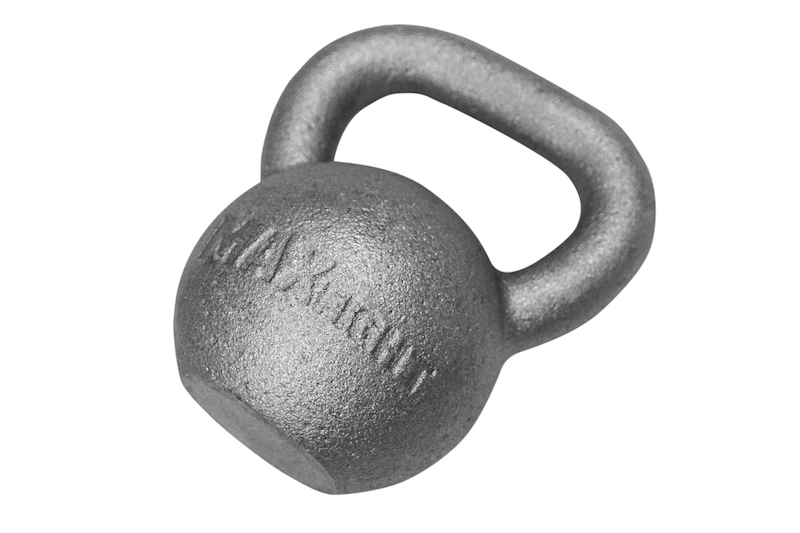

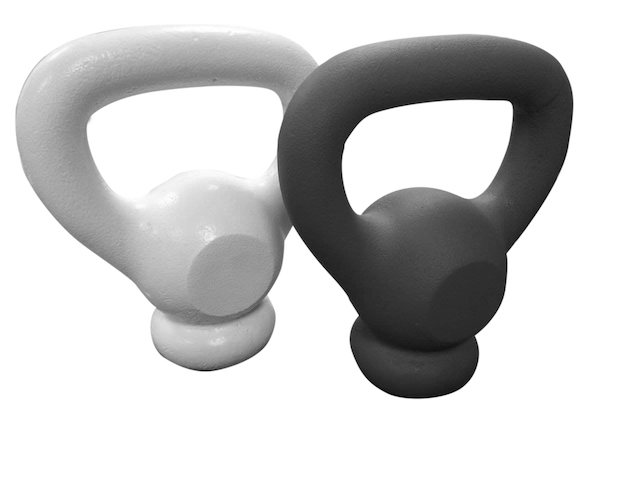

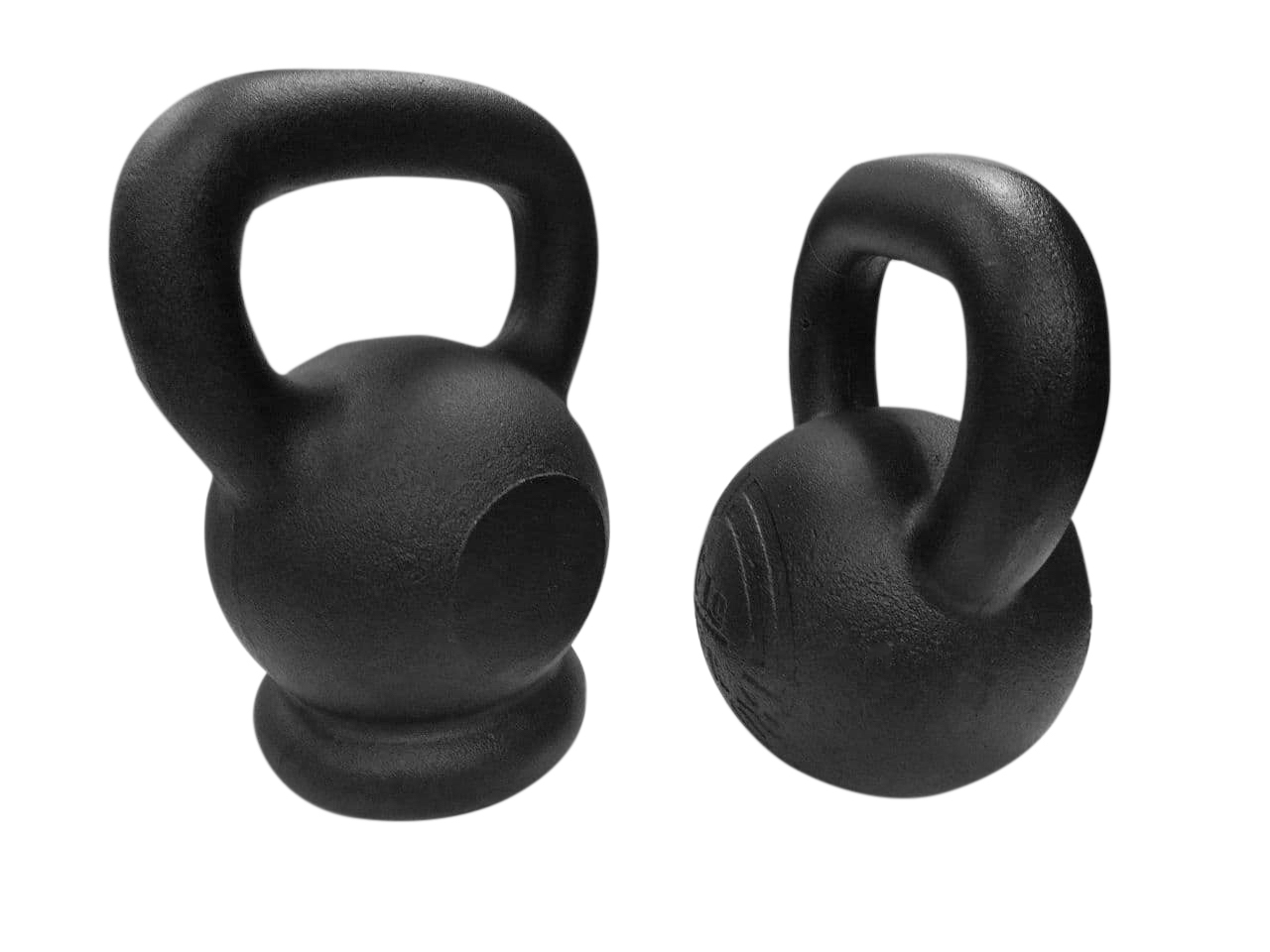

Kettle ball
Kettle ball
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight :16 kg
Railway lock lifter pin
Railway lock lifter pin
Alloy:Steel 20GL
Weight :3.8 kg

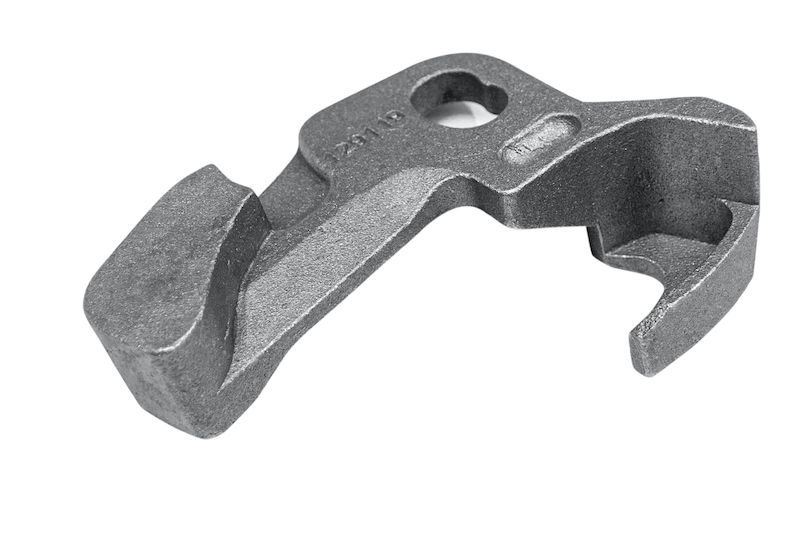

Railway Lock retainer
Railway Lock retainer
Alloy:Steel 20GL
Weight :4.5 kg

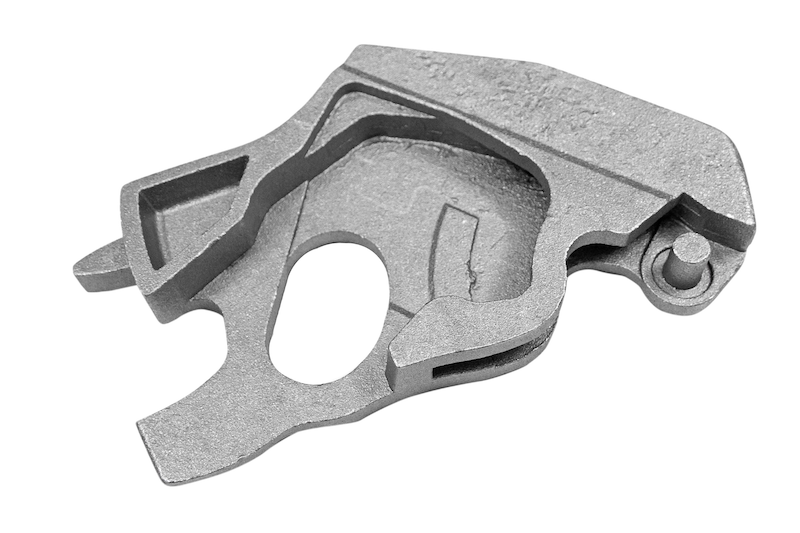

Railway  Lock
Railway Lock
Alloy:Steel 20GL
Weight :12.4 kg

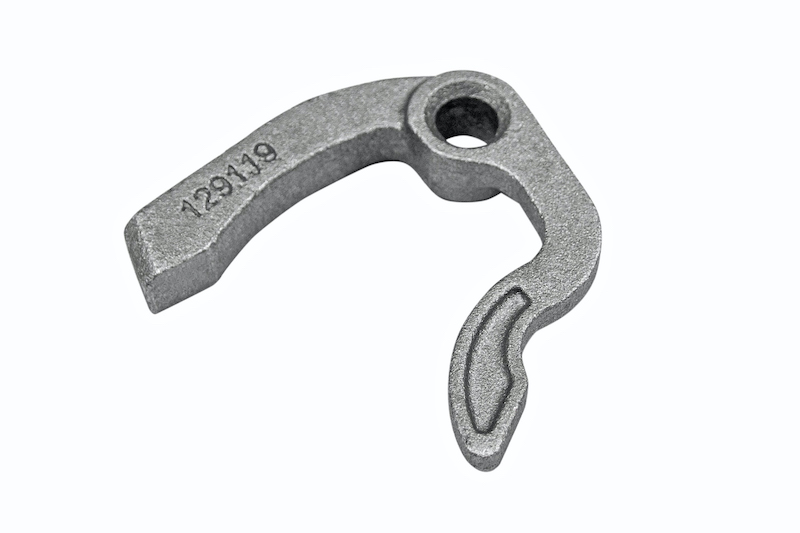

Railway lock to a lock
Railway lock to a lock
Alloy:Steel L30H
Weight :1.5 kg
Railway lock lifter
Railway lock lifter
Alloy: steel
Weight : 1.9 kg
Railway lock lifter
Railway lock lifter
Alloy:Steel 20GL
Weight :2 kg

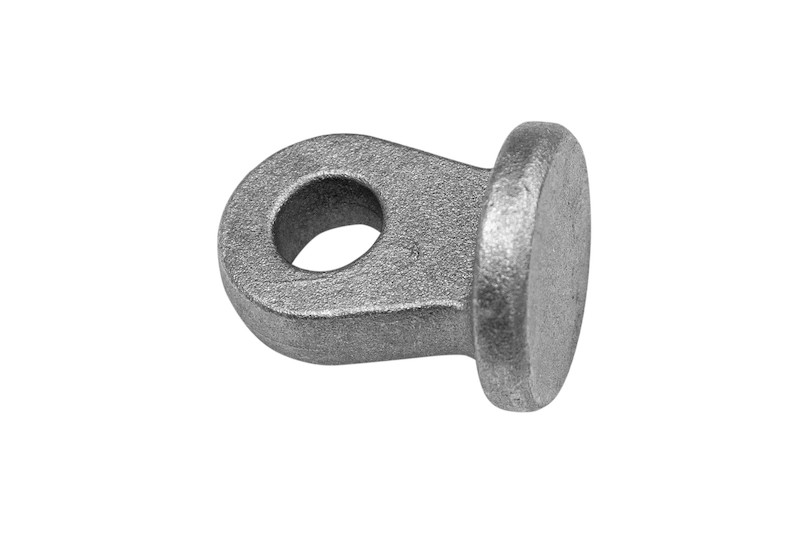

Cylinder ear
Cylinder ear
Alloy: steel 35L
Weight :1.2 kg

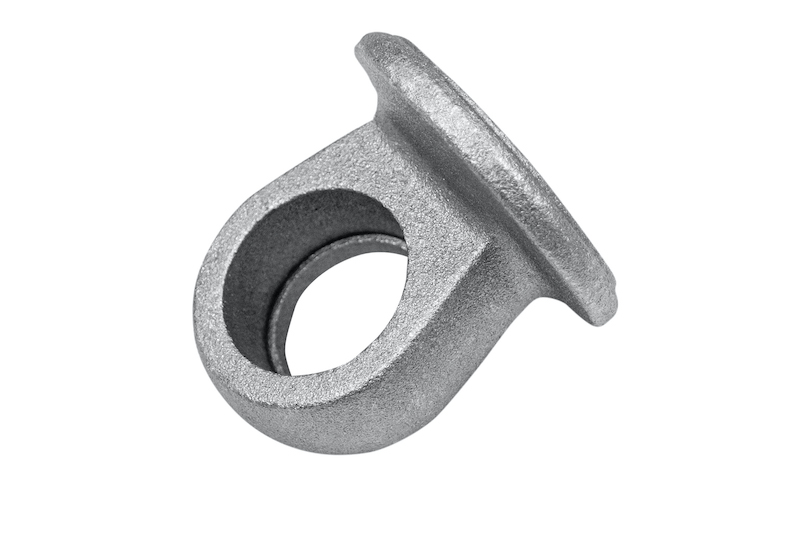

Hydraulic cylinder cap
Hydraulic cylinder cap
Alloy:Steel 35L
Weight :1.8 kg

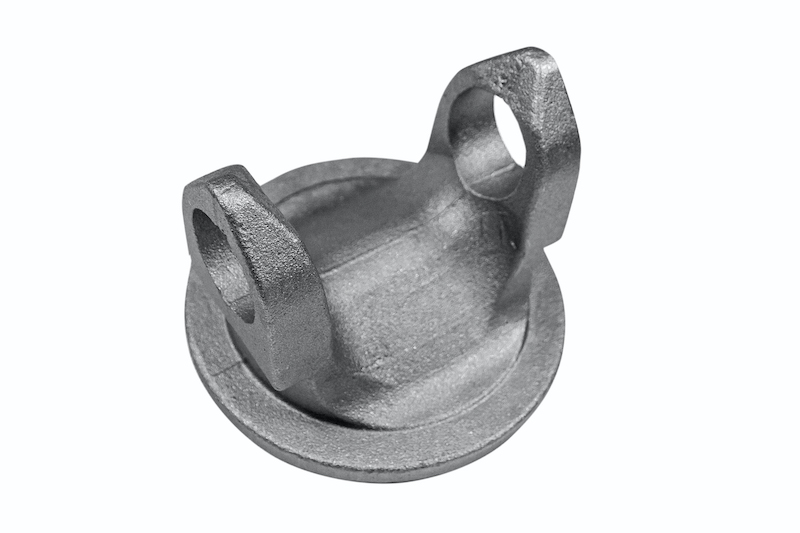

Double flange
Double flange
Alloy:Steel 45L
Weight : 8.7 kg
Flange
Flange
Alloy:Steel 45L
Weight :3.4 kg

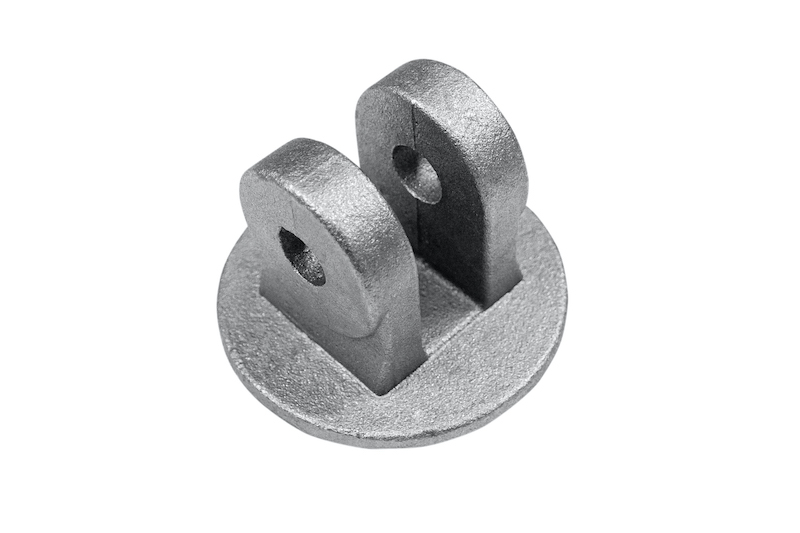

Hydraulic cylinder yoke
Hydraulic cylinder yoke
Alloy:Steel 35L
Weight :4.2 kg

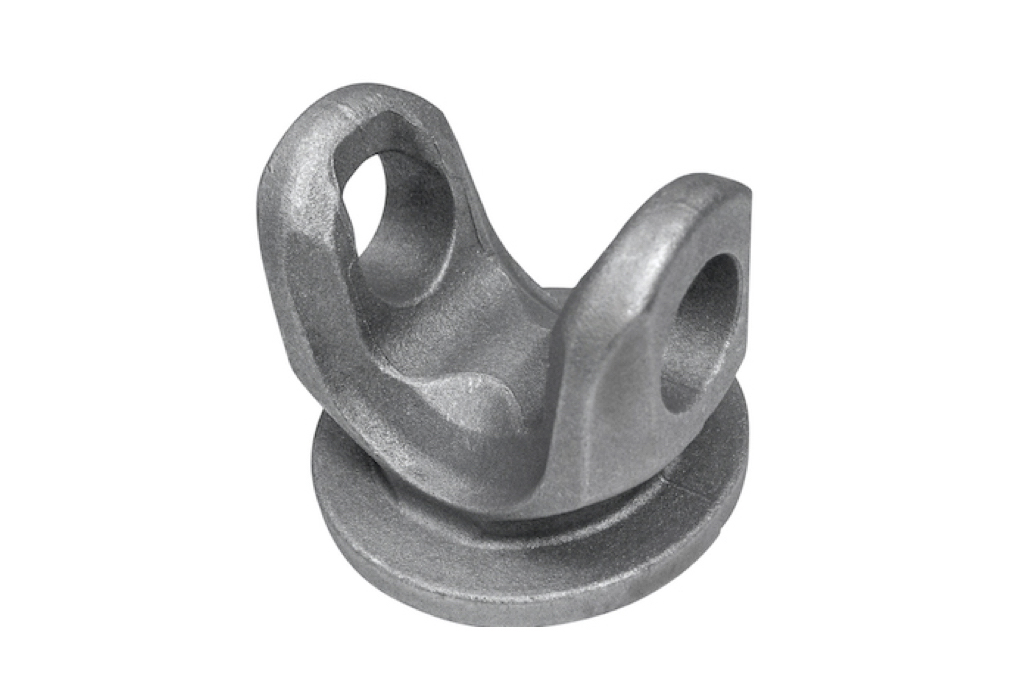

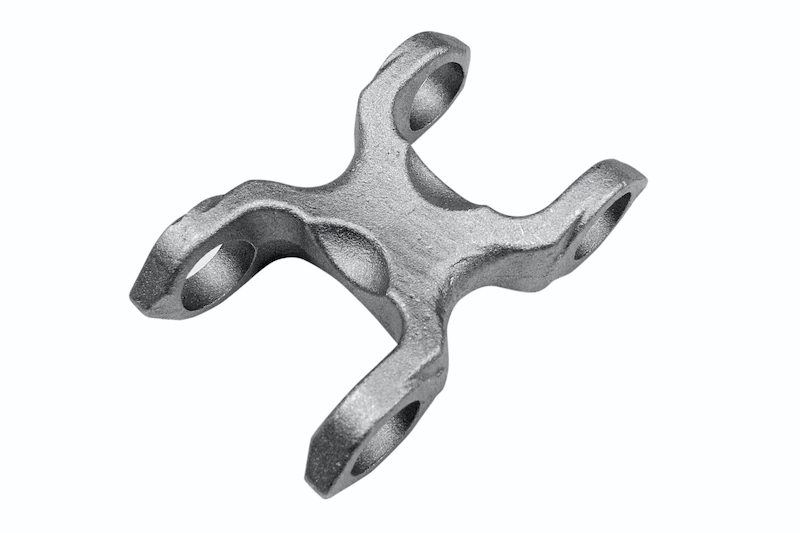

Double Yoke joint
Double Yoke joint
Alloy:Steel 45L
Weight :8.2 kg

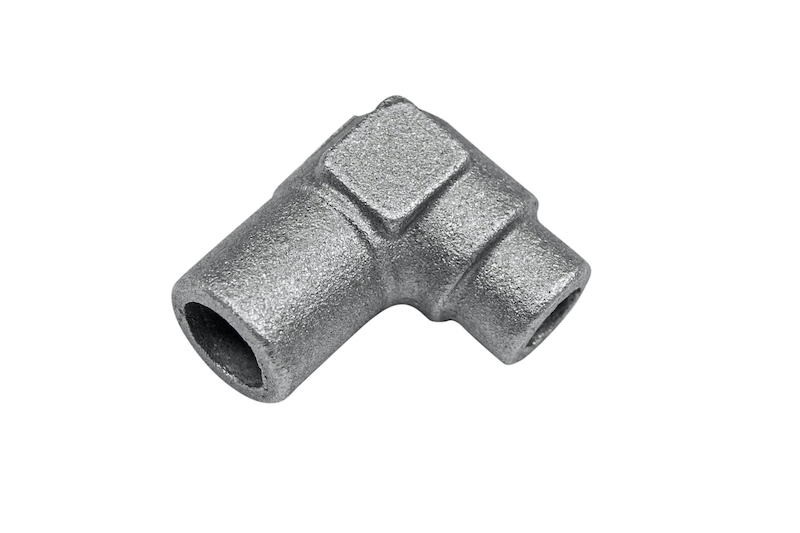

hydraulic angle section
hydraulic angle section
Alloy: steel 35L
Weight :1.2 kg

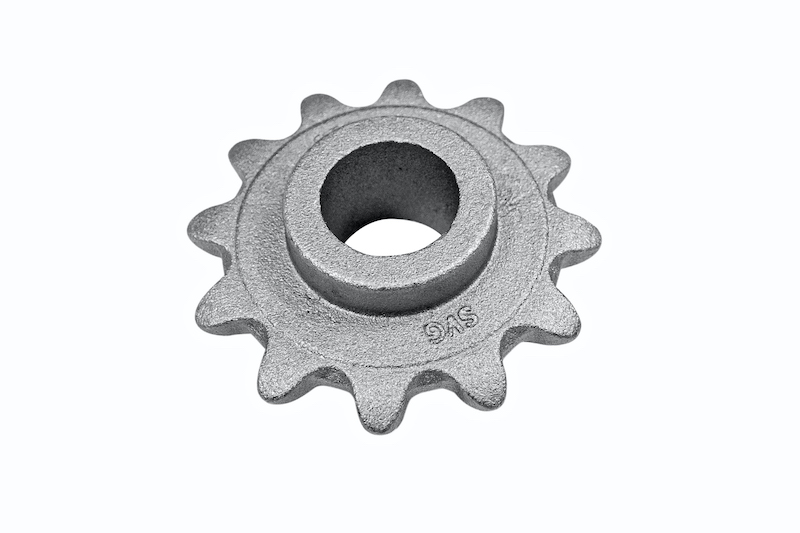

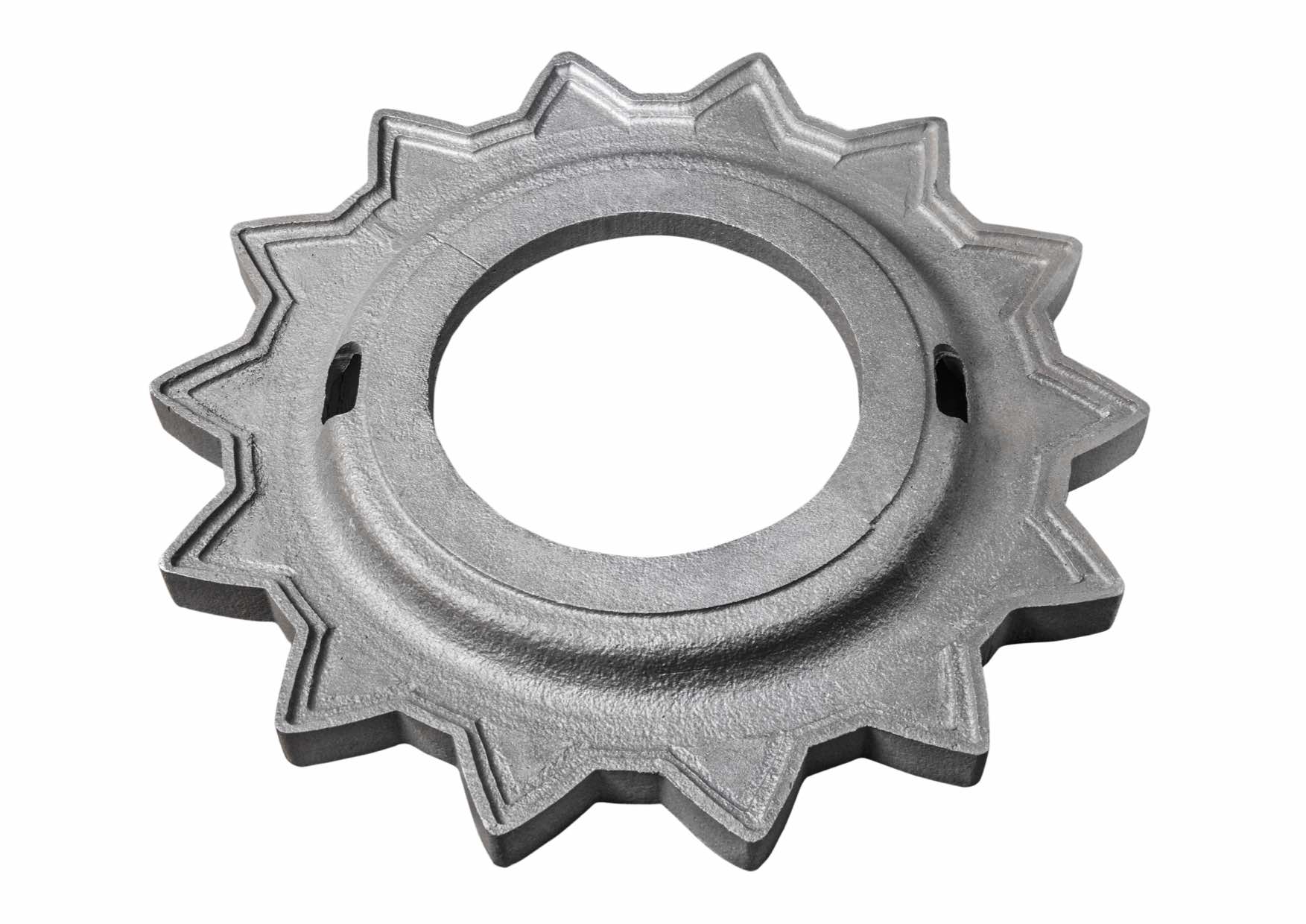

Drive sprocket
Drive sprocket
Alloy: ductile iron EN-GJS-500-7 (GGG50)
Weight :1.2 kg

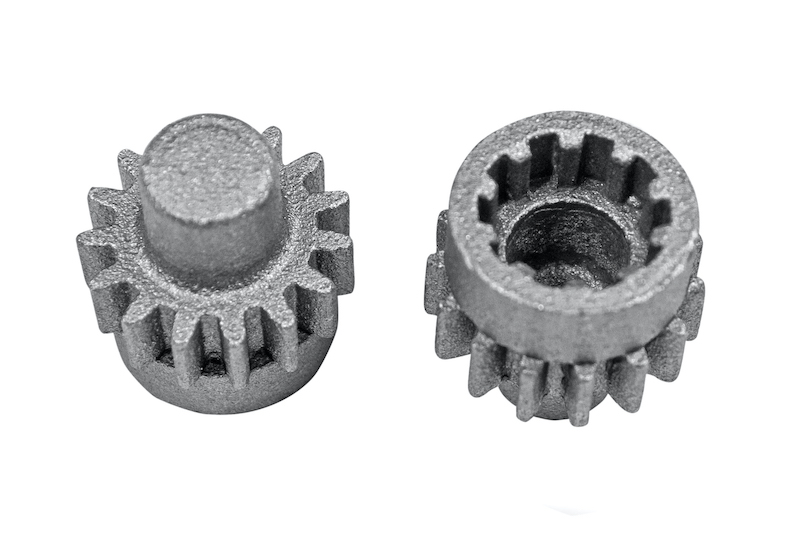

Starting gear
Starting gear
Alloy:steel 45L
Weight :0.35 kg

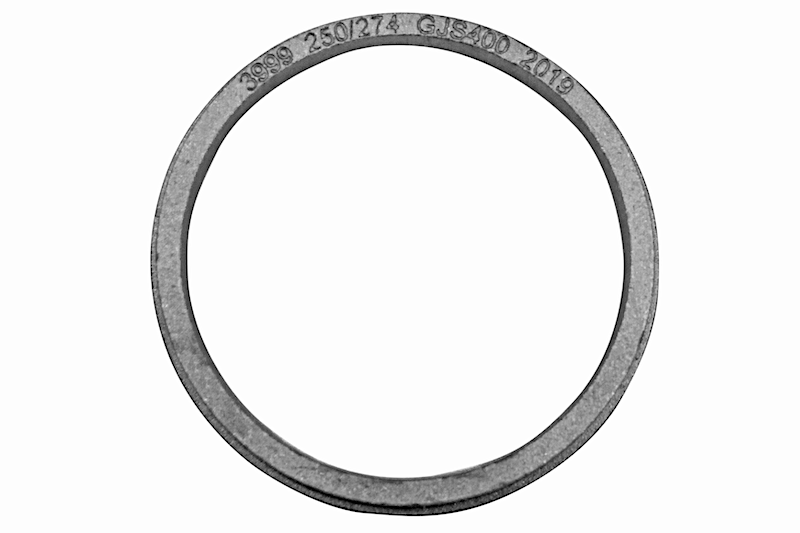

Pipe flange
Pipe flange
Alloy: ductile iron EN-GJS-450-15 (EN-JS-1030)
Weight :4.3 kg

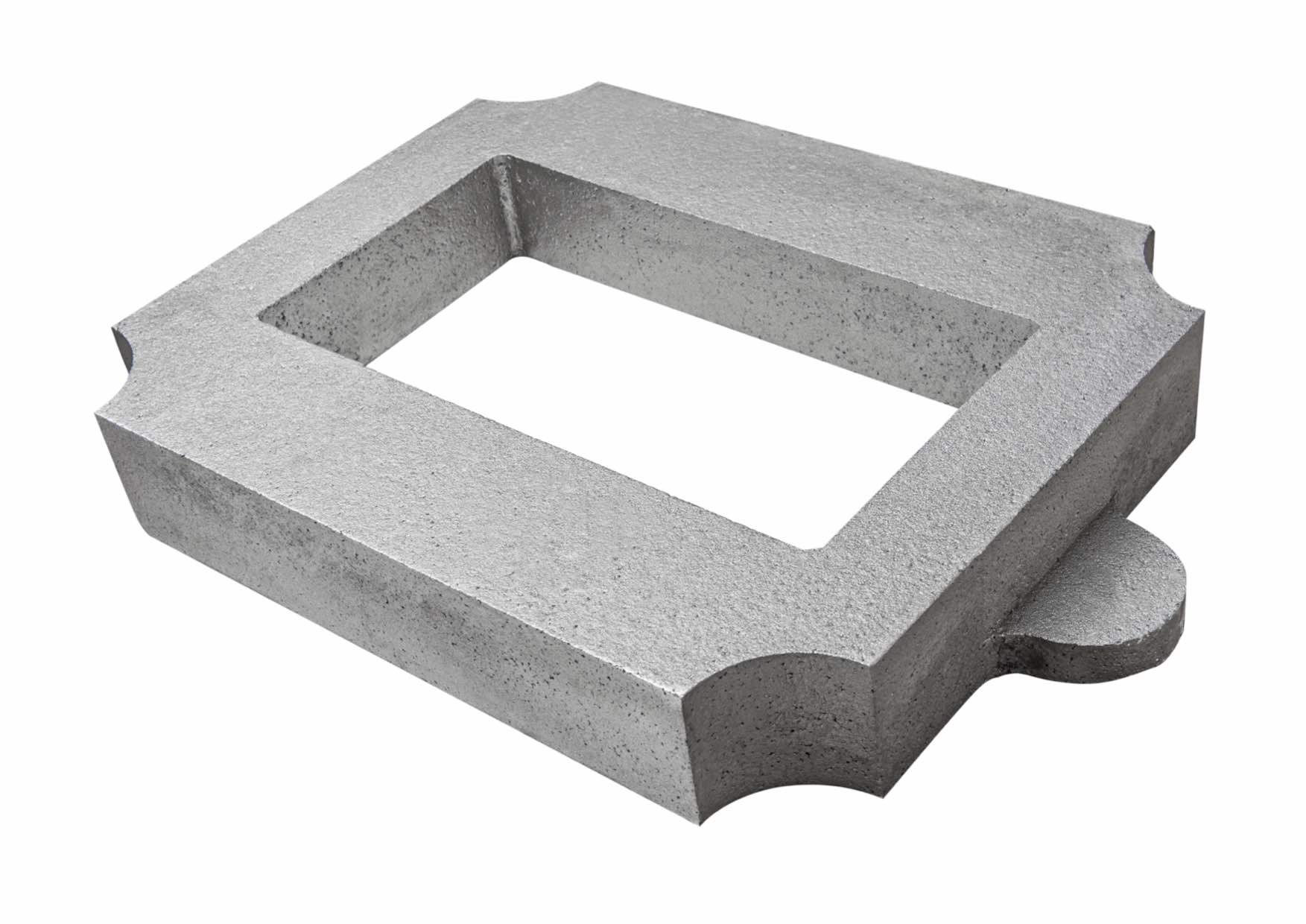

Plate of forming machine
Plate of forming machine
Alloy: ductile iron EN-GJS-500-7 (GGG50)
Weight : 110 kg
Funnel for continuous casting of aluminum
Funnel for continuous casting of aluminum
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight : 70 kg

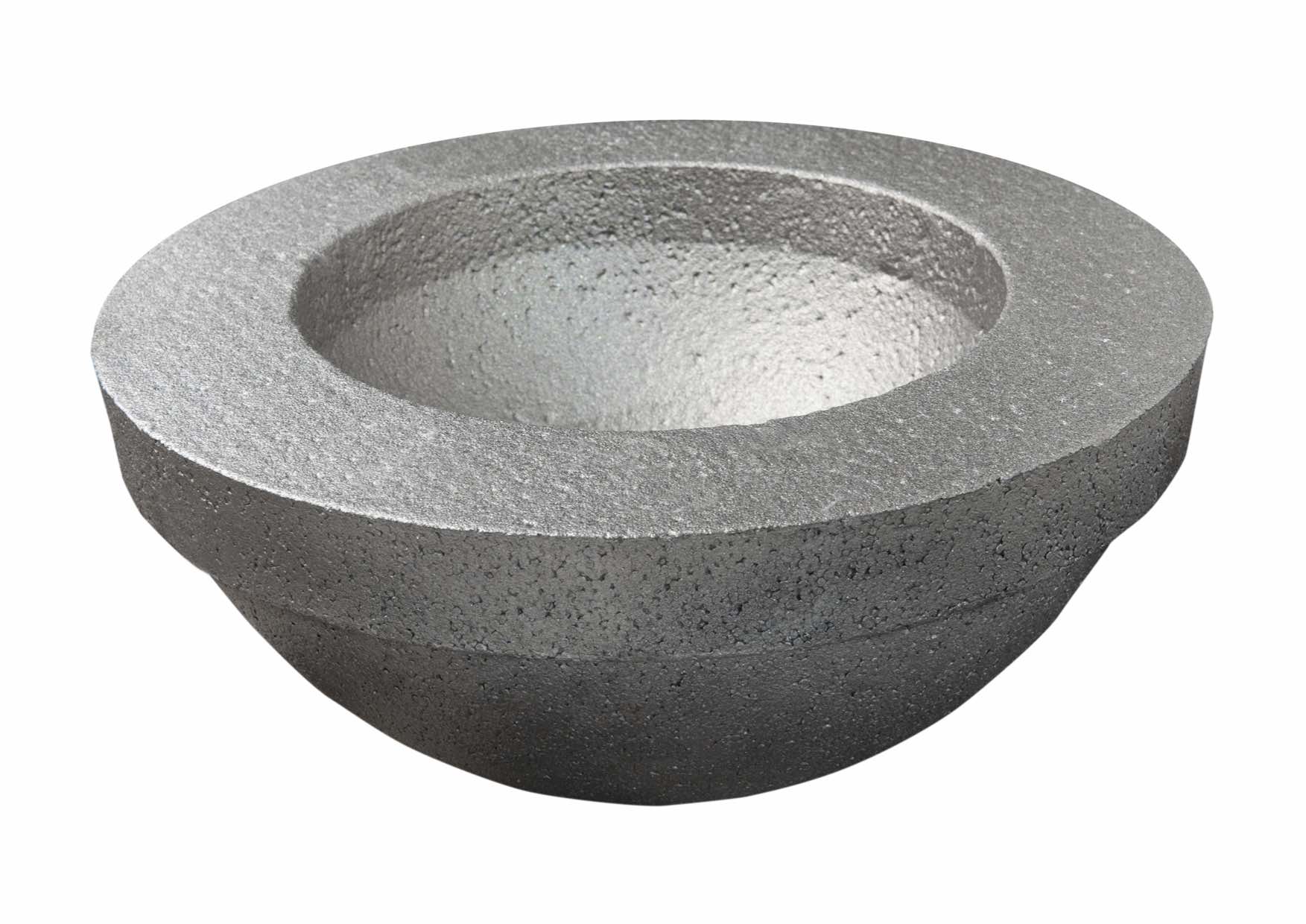

Casting Mold
Casting Mold
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight : 125 kg

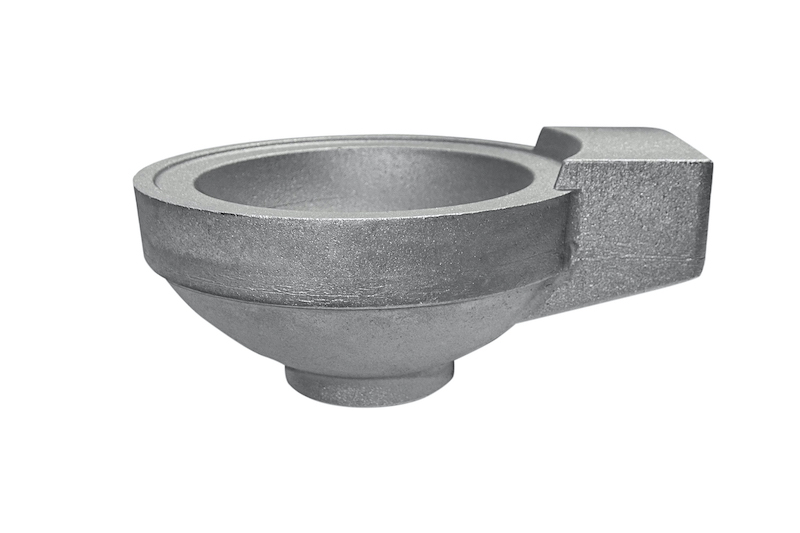

Mold die
Mold die
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight :234 kg
Catch-frame
Catch-frame
Alloy: ductile iron EN-GJS-450-10 (GGG45)
Weight : 3,9 kg

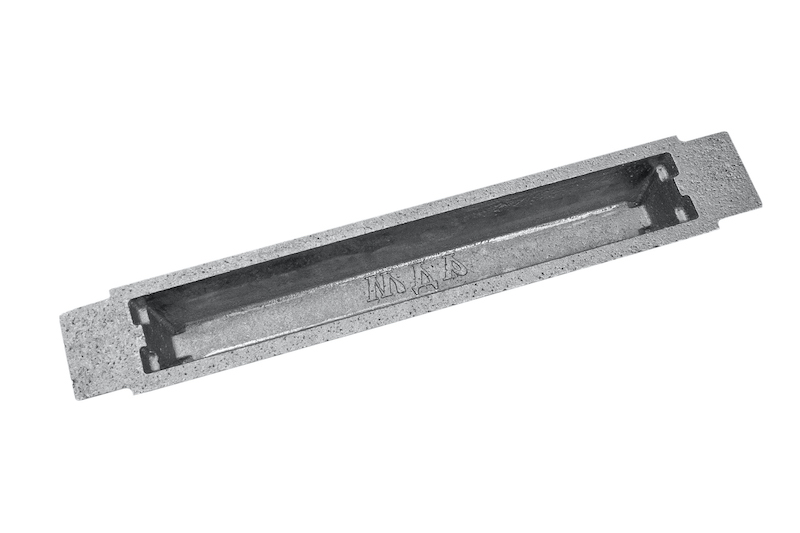

Mould
Mould
Alloy: ductile iron EN-GJS-450-15 (EN-JS-1030)
Weight :34 kg
Drive sprocket
Drive sprocket
Alloy: steel 35L
Weight : 120 kg

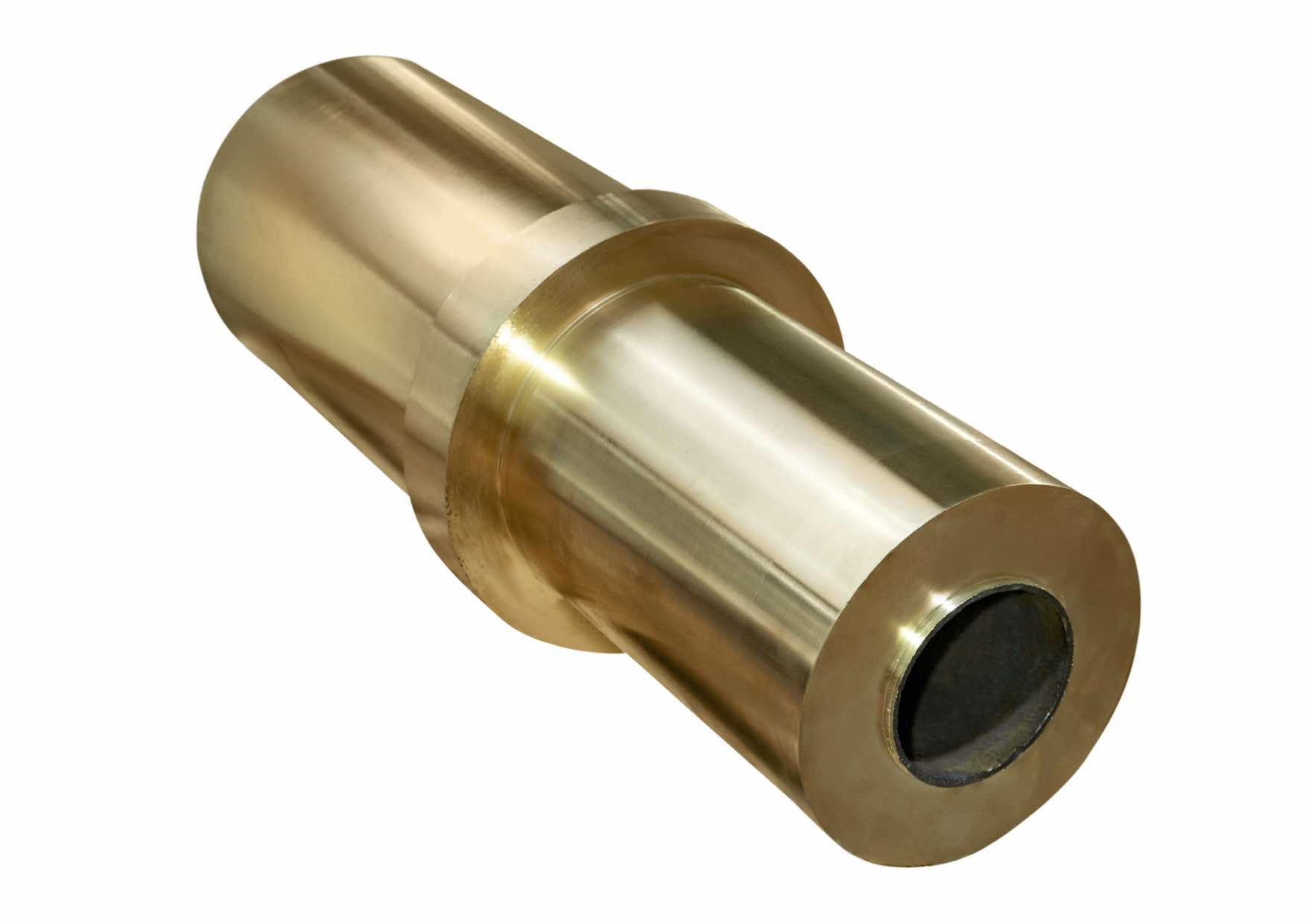

Raw part of Nut
Raw part of Nut
Alloy: bronze
Weight : 680 kg

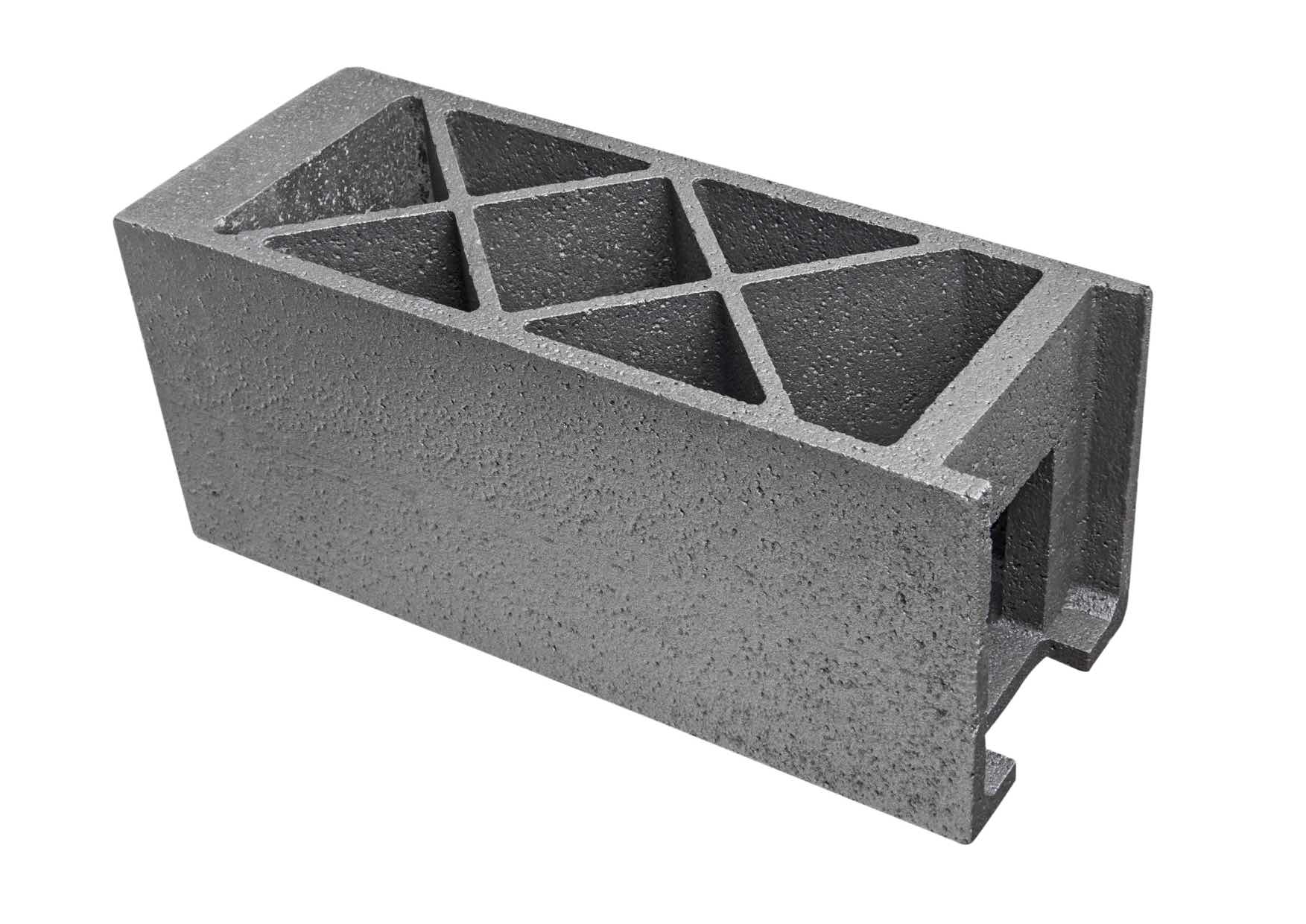

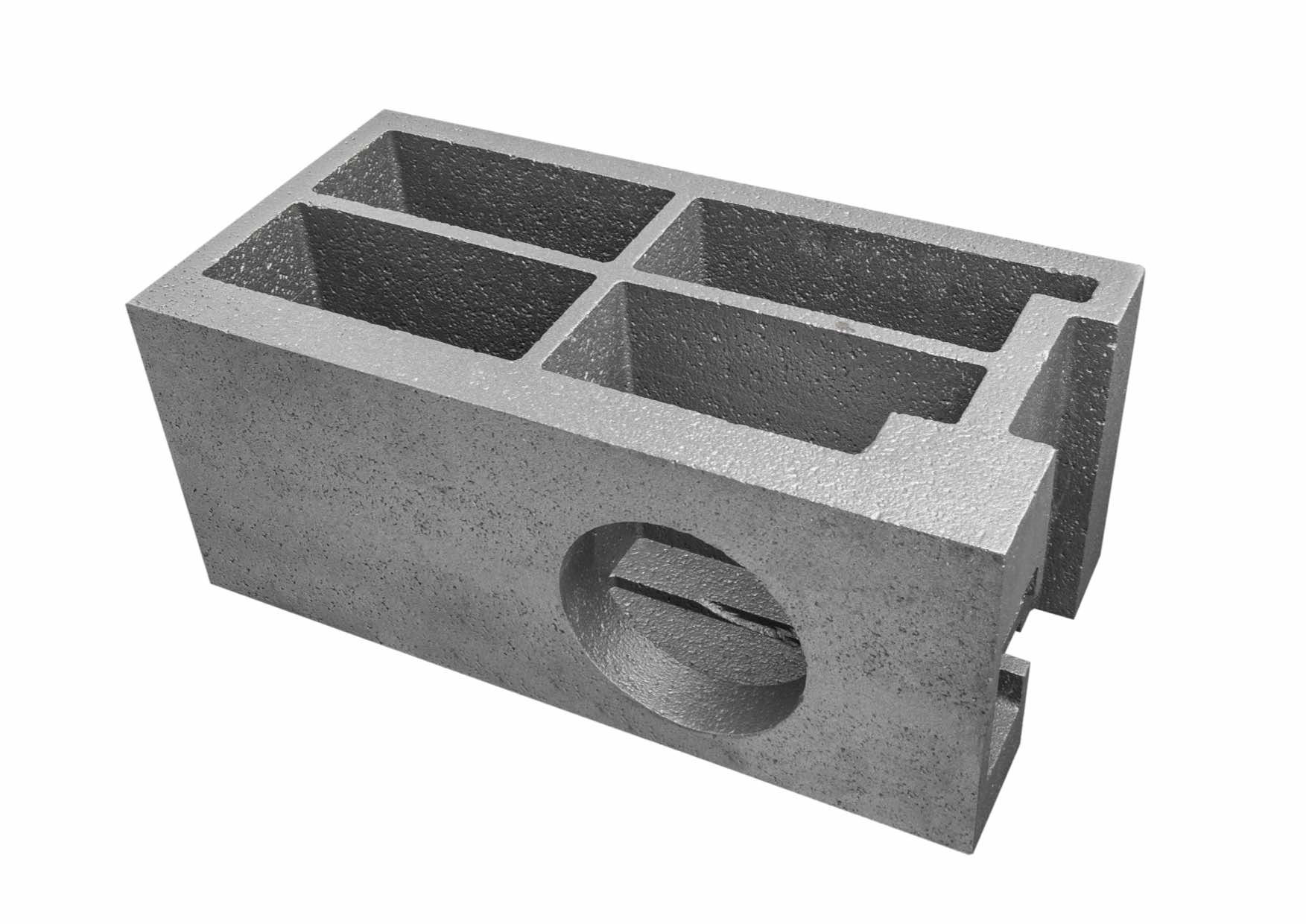

CNC machine part
CNC machine part
Alloy: ductile iron EN-GJS-500-7 (GGG50)
Weight : 15 kg
CNC machine part
CNC machine part
Alloy: ductile iron EN-GJS-500-7 (GGG50)
Weight : 120 kg
CNC machine part
CNC machine part
Alloy: ductile iron EN-GJS-500-7 (GGG50)
Weight : 75 kg
CNC machine part
CNC machine part
Alloy: ductile iron EN-GJS-500-7 (GGG50)
Weight : 80 kg

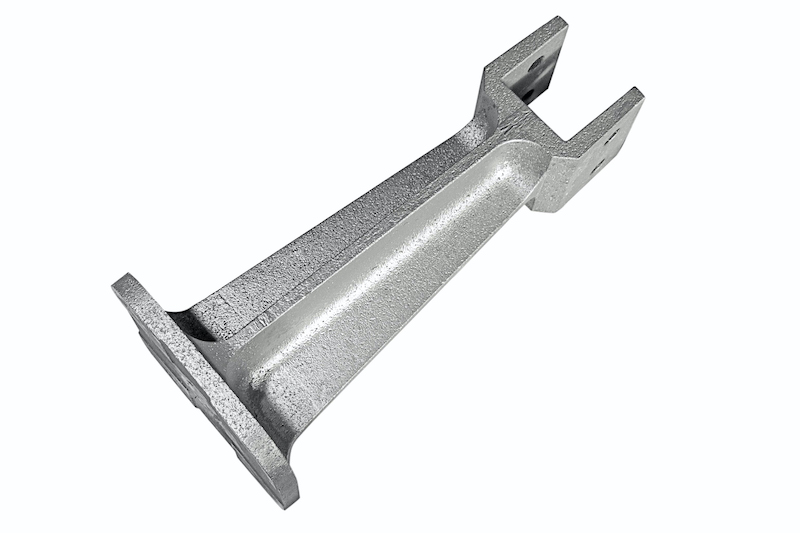

Annealing furnace rack
Annealing furnace rack
Alloy: Heat resistant steel EN 10295
Weight :95 kg

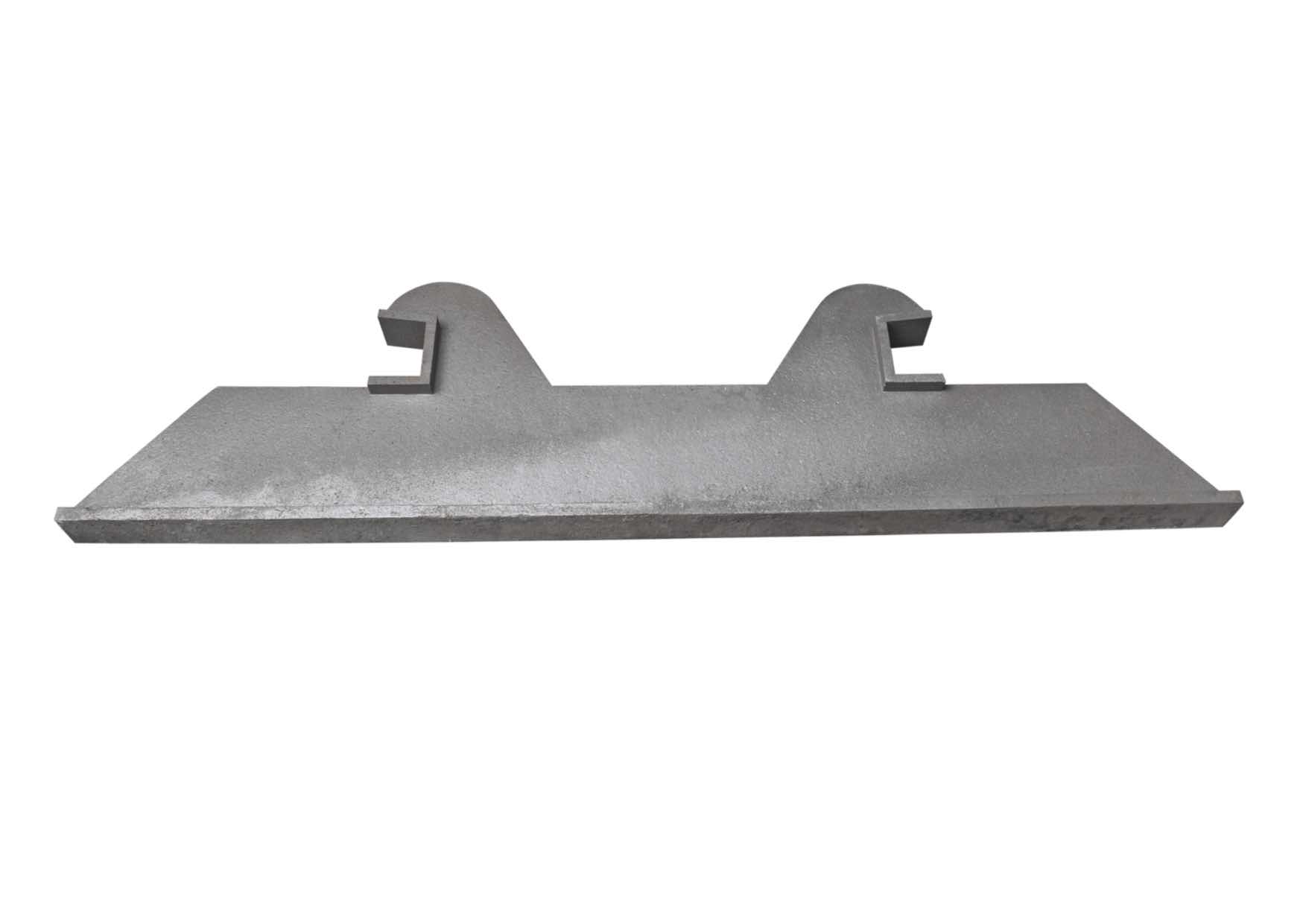

Suspended beam
Suspended beam
Alloy: gray cast iron EN-GJL- 250 (GG25)
Weight : 27 kg

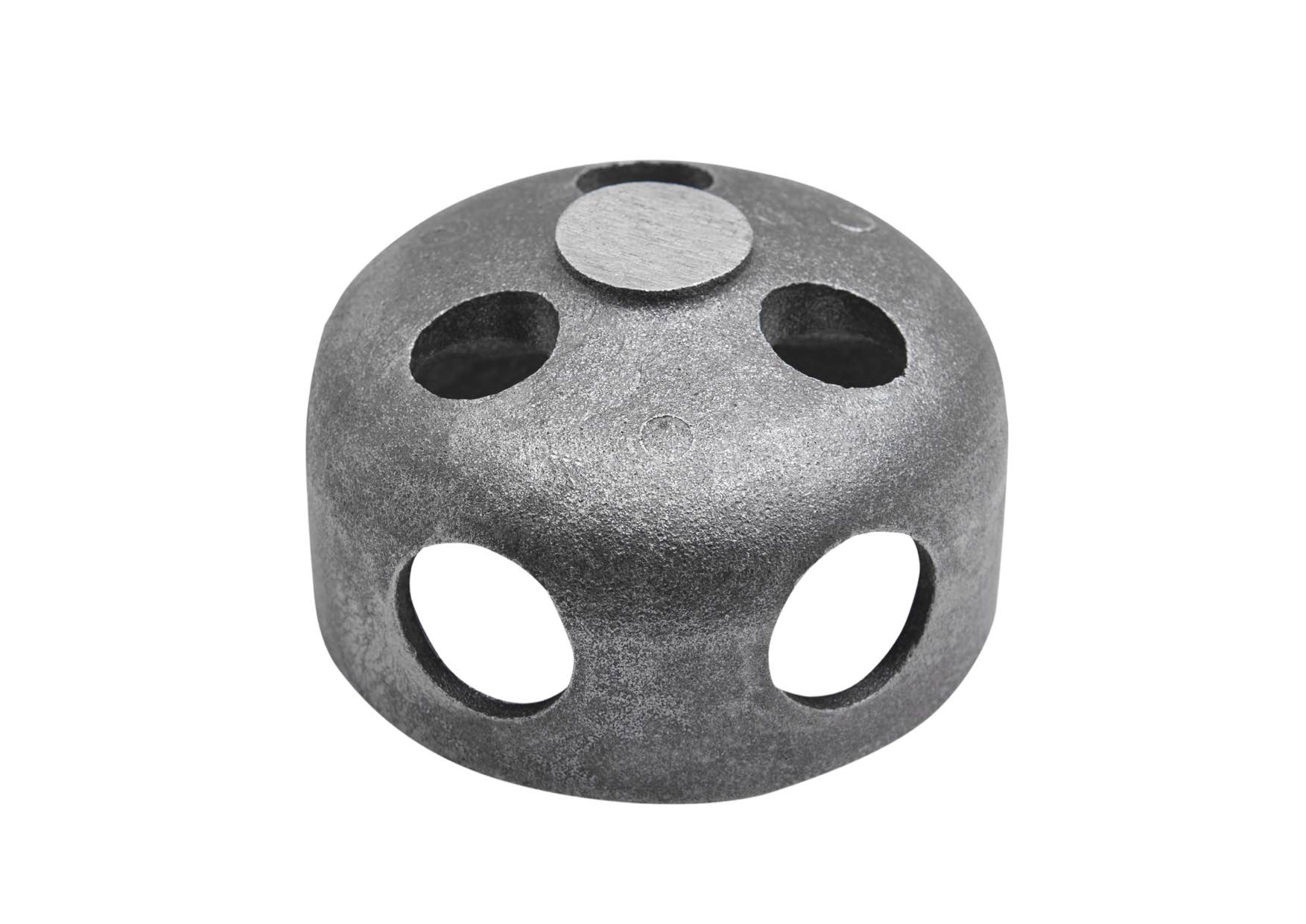

Stop valve industrial compressor
Stop valve industrial compressor
Alloy: ductile iron EN-GJS-500-7 (GGG50)
Weight : 1,2 kg
Small cup
Small cup
Alloy: steel 35L
Weight : 0,5 kg

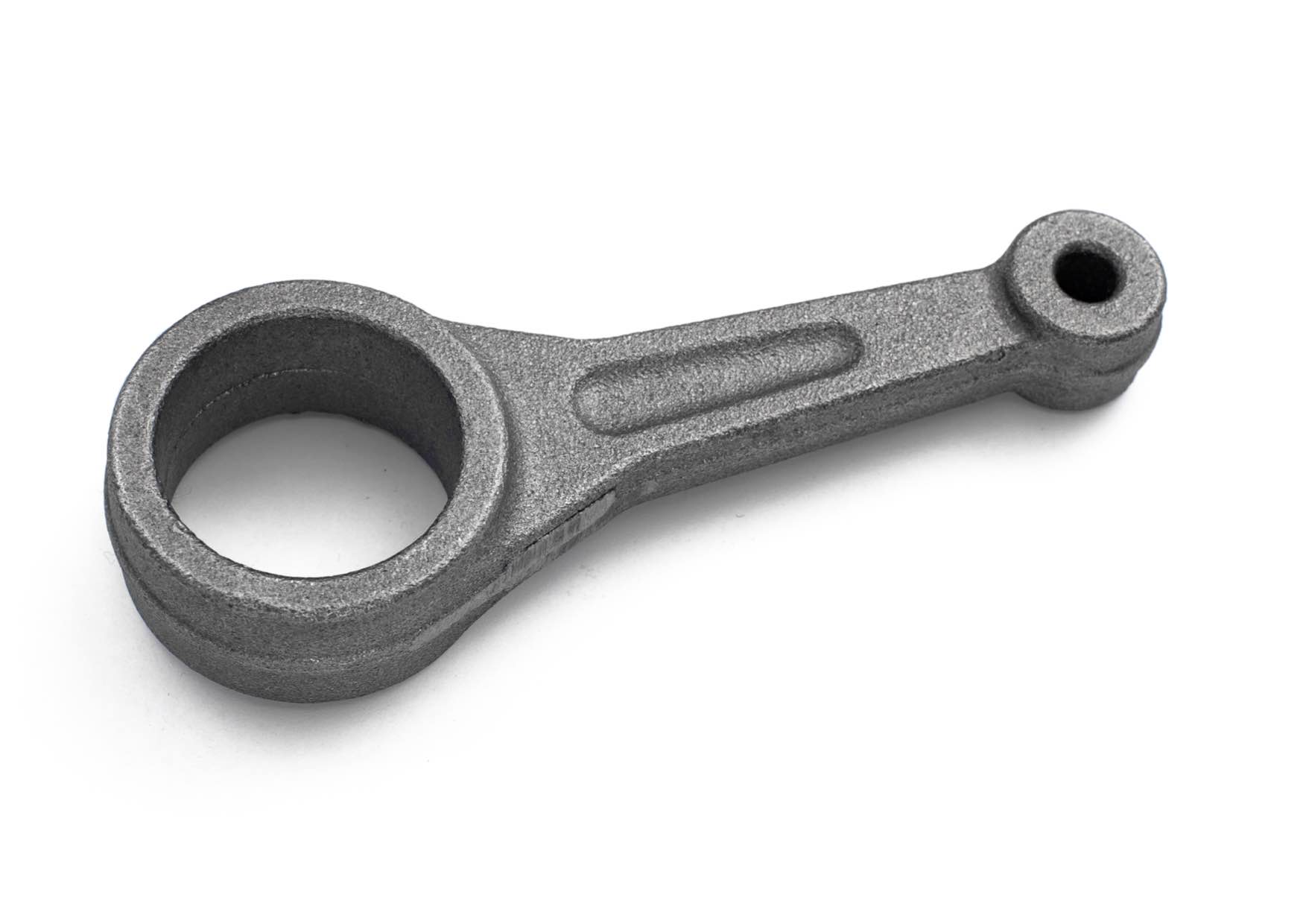

Connecting Rod for an engine
Connecting Rod for an engine
Alloy: steel 35L
Weight : 0,7 kg

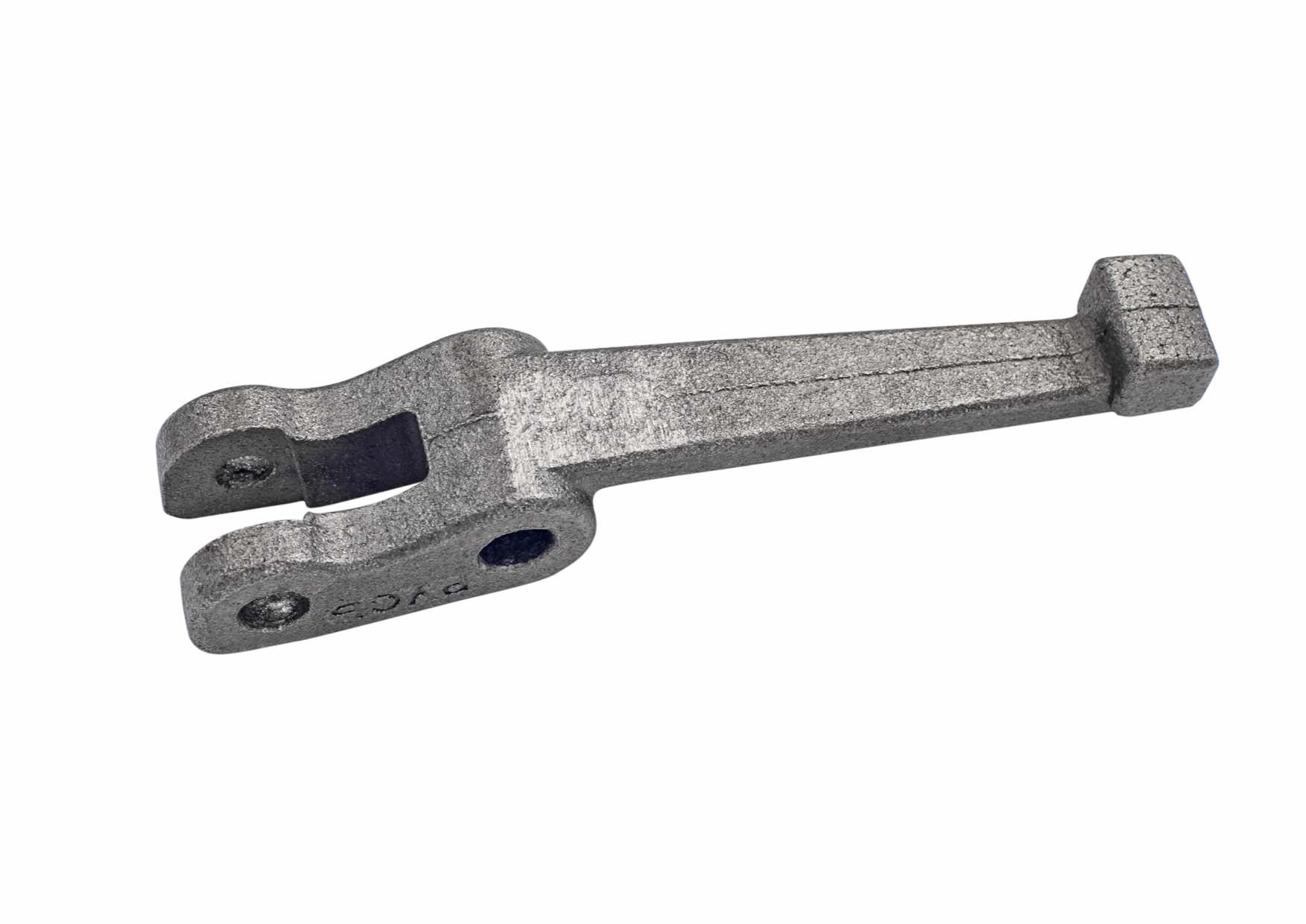

Clutch release fork lever D65
Clutch release fork lever D65
Alloy: steel 35L
Weight : 0,25 kg
Clutch release fork lever D144
Clutch release fork lever D144
Alloy: steel 35L
Weight : 0,22 kg
Clutch release fork lever D240
Clutch release fork lever D240
Alloy: steel 35L
Weight : 0,3 kg
Clutch release fork lever Т-16
Clutch release fork lever Т-16
Alloy: steel 35L
Weight : 0,2 kg

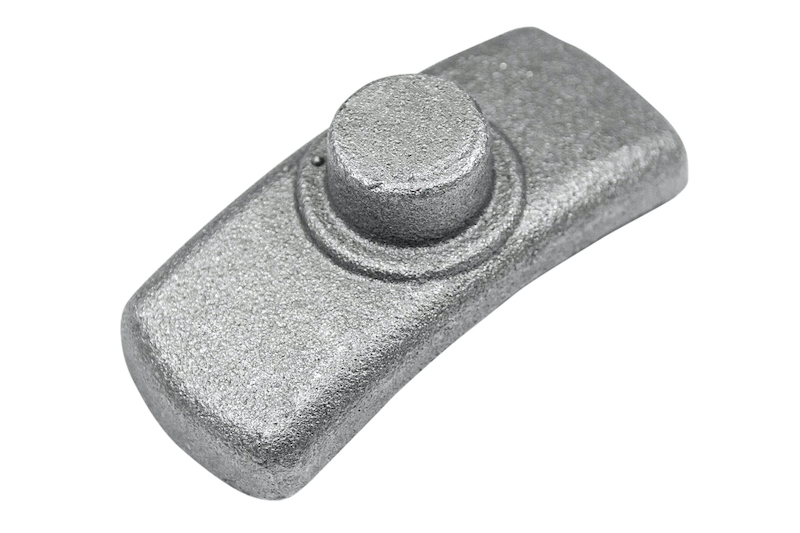

Brake shoe
Brake shoe
Alloy: steel 35L
Weight :0.85 kg
Valve housing
Valve housing
Alloy: steel 35L
Weight : 14 kg

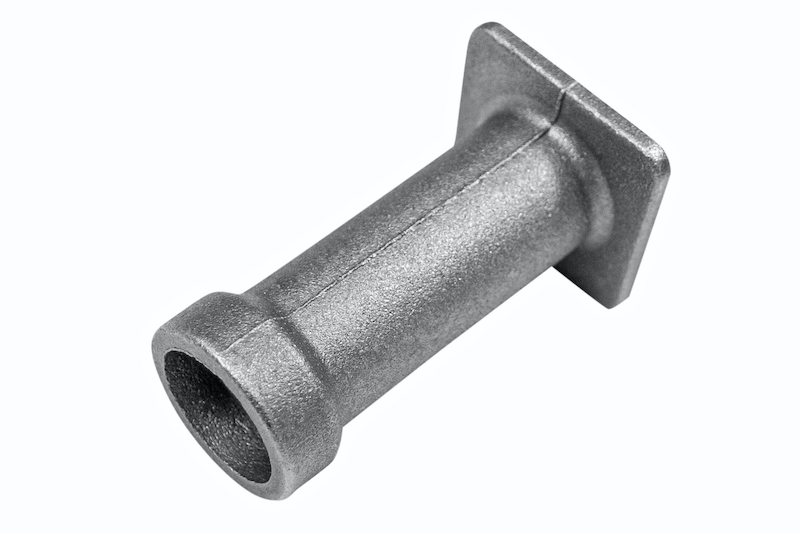

Dispenser glass
Dispenser glass
Alloy: ductile iron EN-GJS-450-10 (GGG45)
Weight :1.4 kg

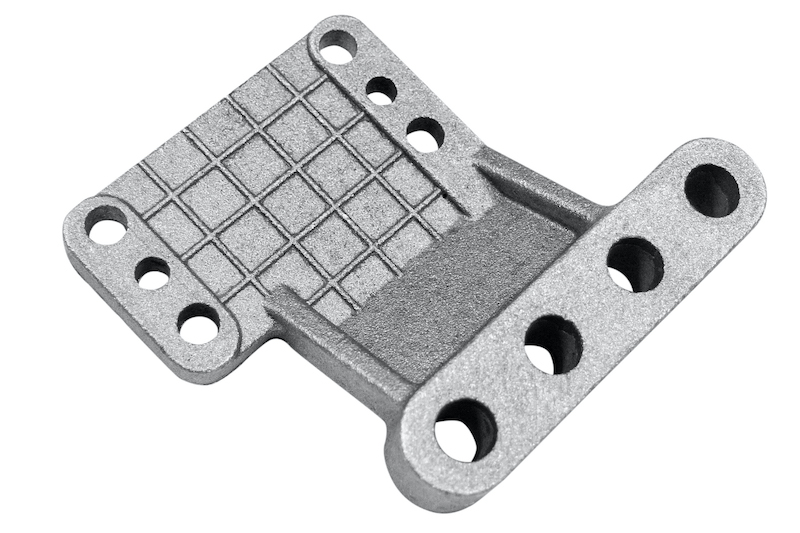

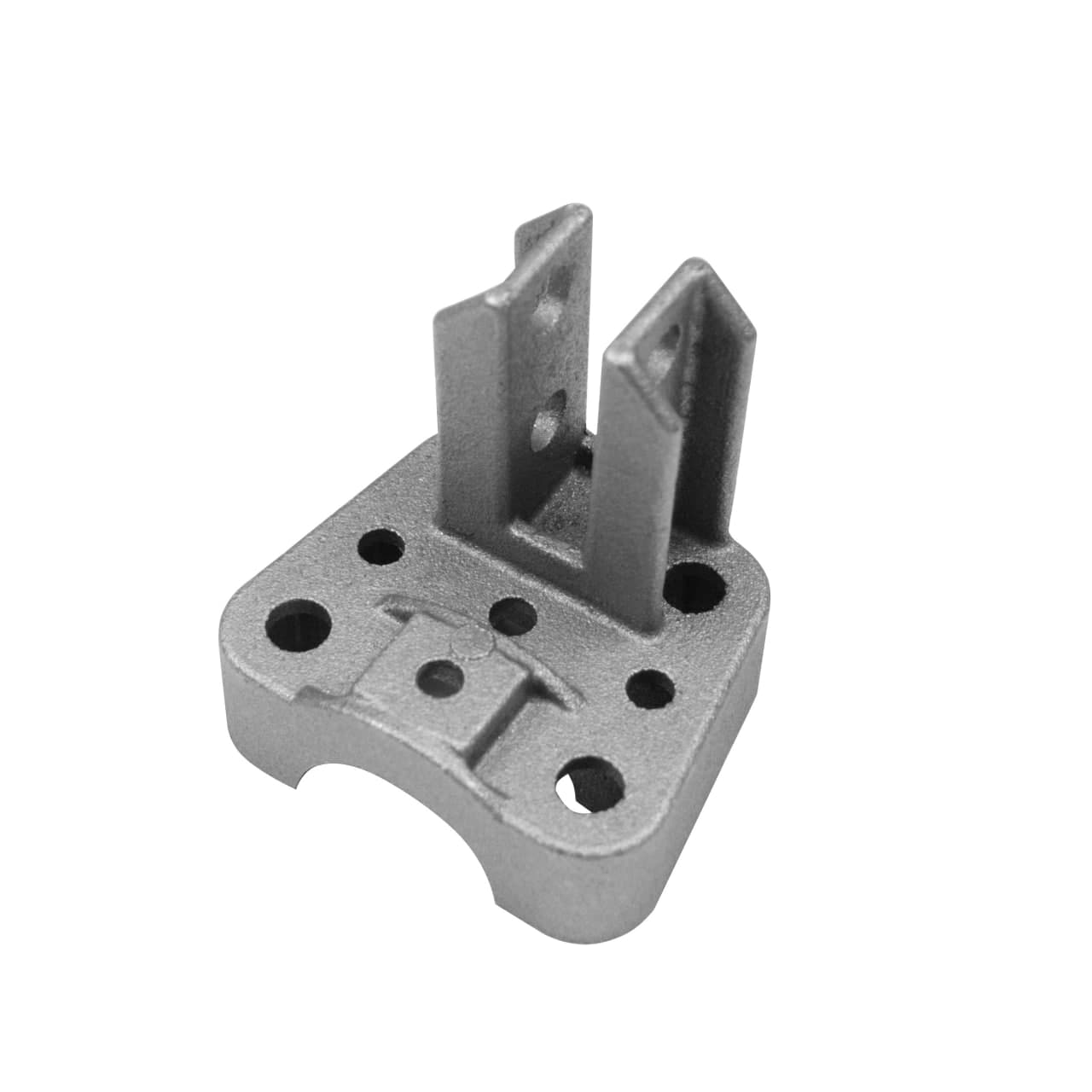

Bracket MTZ-80
Bracket MTZ-80
Alloy:Steel 45L
Weight :5.2 kg
